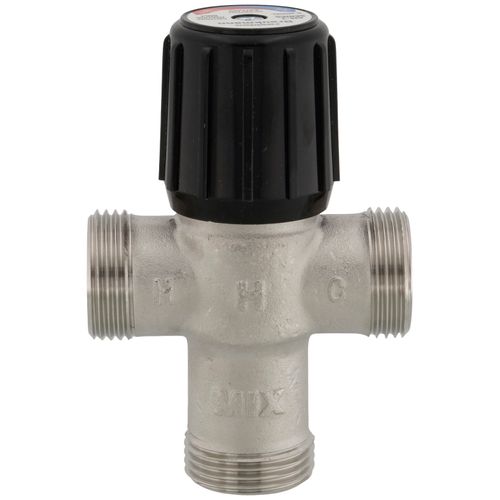

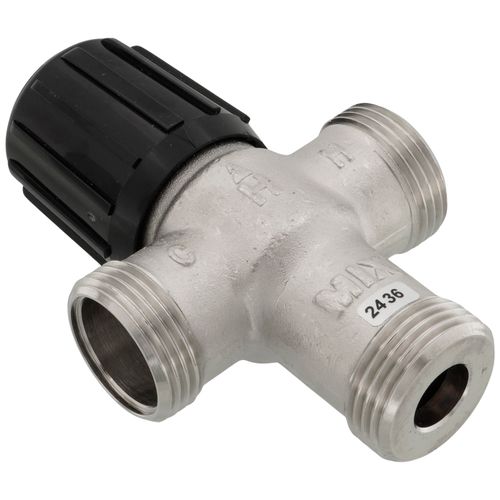

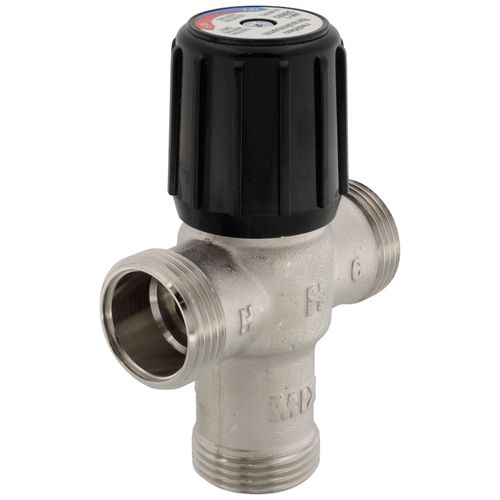

Main product image of AM1 Mixing Valve Body Only (70-180F)
Magnifying glass
Hover image to zoom

AM1 Mixing Valve Body Only (70-180F)

Brand:
Resideo Braukmann
SKU:
AM1-RBODY-1
Rating:
(0)
Q&A:
(0)
AM1 Mixing Valve Body Only (70-180F)
Magnifying glass
Hover image to zoom
$76.81 each
In Stock
In Stock
Get 2 Wed, Jun 24
Order by today, receive Wednesday
Temperature Range (F):
70°F - 180°F
70°F - 120°F
70°F - 180°F
70°F - 120°F70°F - 180°F

MANUALS (1)

Product Overview
This item replaces: AM101R-USTG-1
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Connection Type
MNPT x MNPT Connection
Product Highlight: Size
3/4", 1", 1/2"
Product Highlight: Flow Capacity (Cv)
3.9 Cv
Product Highlight: Max Temp (F)
180°F Max Temp
Product Highlight: Min Temp (F)
70°F Min Temp
Product Highlight: Temperature Range (F)
70°F - 180°F

Description

–

Series AM1 Radiant Mixing Valve (Body Only)


Specifications:

  • Application: Scald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
  • Maximum Safe Operating Pressure (psi): 150 psi
  • Maximum Safe Operating Pressure (kPa): 1034 kPa
  • Approvals, Canadian Standards Associations: CSA Certified
  • Operating Temperature Range (C): 21 C to 49 C
  • Connection Type: Male NPT
  • Minimum flow rate (gpm): 0.5 gpm
  • Pipe Size (inch): Will work with 1/2", 3/4" and 1" fittings
  • Fluid Temperature (C): Cold Inlet: 4 C to 27 C; Hot Inlet: 49 C to100 C; Mixed Outlet: 21 C to 82 C
  • Fluid Temperature (F): Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 212 F; Mixed Outlet: 70 F to 180 F
  • Capacity (Cv): 3.9 Cv
  • Valve Type: Mixing Valves
  • Materials (Body): Teflon-Coated, Nickle-Plated
  • Minimum flow rate (lpm): 1.9 lpm
  • Materials (Packing): EPDM O-rings

Specs

–
Connection Method:

Threaded

Size:

3/4"

1"

1/2"

Connection Type:

MNPT x MNPT

Max Temp (F):

180°F

Temperature Range (F):

70°F - 180°F

Min Temp (F):

70°F

Type:

Mixing Valve

Application:

Point of Source

Point of Use

Flow Capacity (Cv):

3.9
