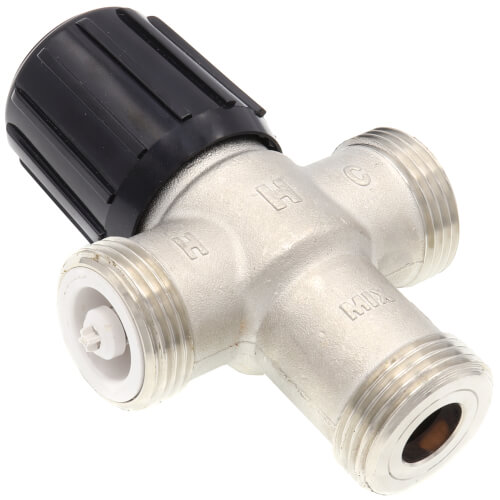

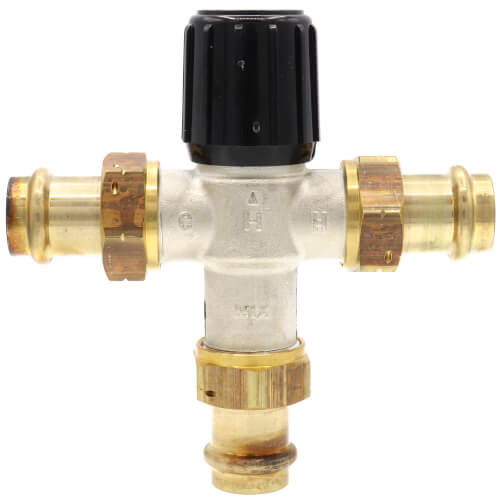

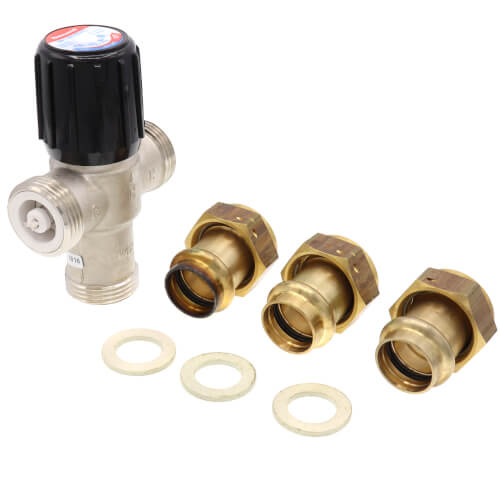

Resideo Braukmann AM-1 Anti-Scald Mixing Valve
3/4" Union Press Mixing Valve Lead Free, ASSE 1070 (70-Degree F - 120-Degree F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.82 each
In Stock
Get 13 Wed, Oct 4
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Press x Press Connection
3/4"
3.2 Cv
120°F Max Temp
70°F Min Temp
70°F - 120°F
Description
–
Overview
Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 F (100 C)
- Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
Specs
–
| Application: | Point of Source |
|---|---|
| Size: | 3/4" |
| Max Temp (F): | 120°F |
| Min Temp (F): | 70°F |
| Temperature Range (F): | 70°F - 120°F |
| Connection Type: | Press x Press |
| Connection Method: | Press |
| Flow Capacity (Cv): | 3.2 |
| Max Pressure (PSI): | 150 |
| Type: | Mixing Valve |
| Lead Free: | Yes |
| Standards Met: | ASSE 1070 ASSE 1017 |
| Body Pattern: | 3-Way |
