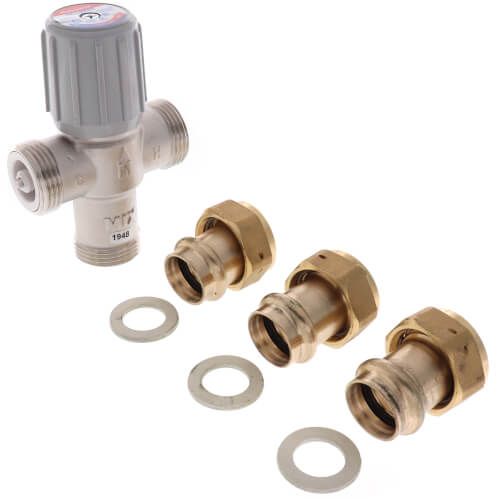

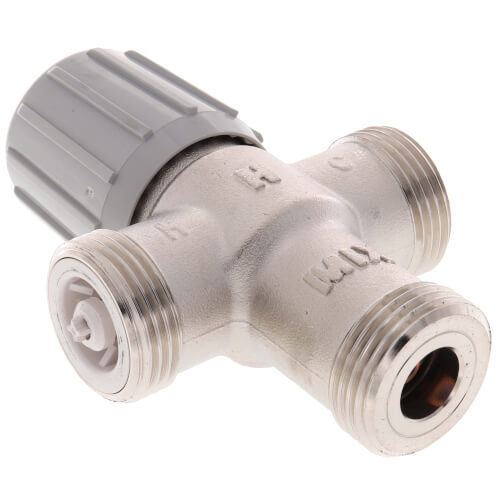

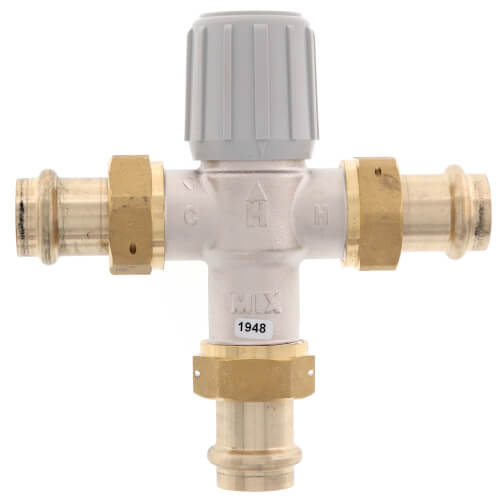

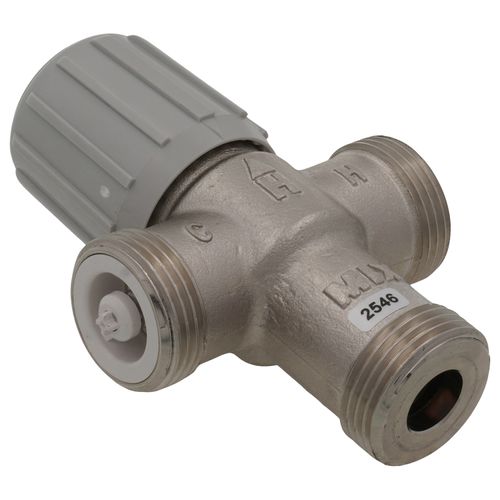

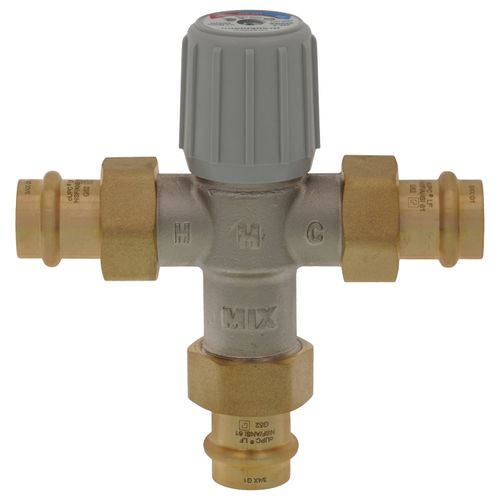

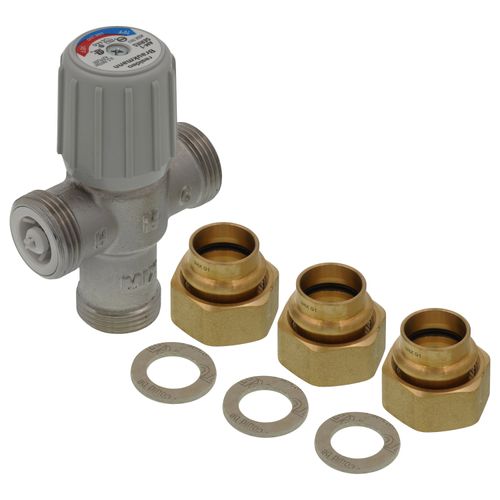

3/4" Union Press Mixing Valve Lead Free (70-Degree F - 145-Degree F)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$184.71 each
In Stock
Get 42 Tue, Jul 7
Order by today, receive Tuesday
Size:
3/4"
Connection Type:
Press x Press
Temperature Range (F):
70°F - 145°F
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Press x Press Connection
3/4"
3.2 Cv
145°F Max Temp
70°F Min Temp
70°F - 145°F
Description
–
Overview
Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
Honeywell AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Features
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 F (100 C)
- Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
Specs
–
| Application: | Point of Source |
|---|---|
| Size: | 3/4" |
| Max Temp (F): | 145°F |
| Min Temp (F): | 70°F |
| Temperature Range (F): | 70°F - 145°F |
| Connection Method: | Press |
| Connection Type: | Press x Press |
| Flow Capacity (Cv): | 3.2 |
| Max Pressure (PSI): | 150 |
| Type: | Mixing Valve |
| Lead Free: | Yes |
| Standards Met: | ASSE 1017 |
| Body Pattern: | 3-Way |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-5 of 5 reviews
Water heater buster
Making your water heater more efficient and more reliable
Zapata's
Silver spring MD 20904
4 months ago
Verified Buyer
Was this review helpful to you?
Part as decribed and sihipped
My installer gave the info to order this valve, it arrived quickly and exactly as ordered. Excellent! Great service and ordering!
itsaday
Belmont NH
3 years ago
Verified Buyer
Was this review helpful to you?
Works perfectly
Easy to install with propress
Bucky
Saco Maine
3 years ago
Verified Buyer
Was this review helpful to you?
Great Product , AM101-UP-1LF
My techs love it, fits back in nicely from the old existing am101 union type. Makes the job so much easier!
Lex
Bladensburg ,MD
4 years ago
Verified Buyer
Was this review helpful to you?
Great mixing valve.
Same dimensions as other mixing valves, making it easy to change from other brands. Also works with higher input temp of 200 deg instead of most others at 180 deg.
