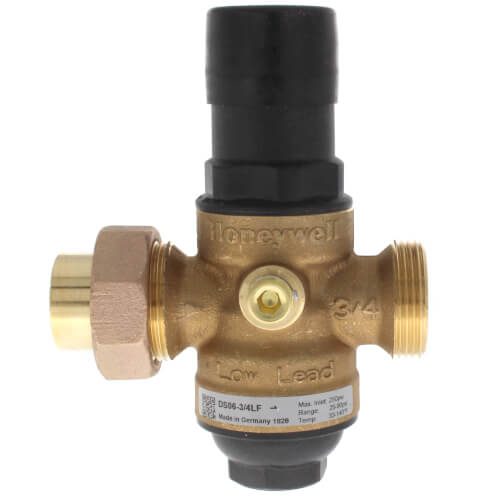

3/4" Single Union NPT DialSet Pressure Regulating Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$101.53 each
In Stock
Get 6 Tomorrow, Jun 26
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: DS05C1055
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
90 MAX PSI
25 PSI
Union FNPT
Union FNPT
3/4"
Description
–
Overview
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
Features
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
- Dimensions: 8 5/8" High x 6" Long
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Single-Union Threaded
- Approvals, ASSE: Certified 1003-2027
- Approvals, IAPMO: Listed
Features
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Specs
–
| Size: | 3/4" |
|---|---|
| Pressure Range: | 25 to 90 PSI |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 90 |
| Max Inlet Pressure: | 250 PSI |
| Inlet Type: | Union FNPT |
| Outlet Type: | Union FNPT |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Gauge: | none |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Union Fittings: | Single-Union Threaded |
| Lead Free: | Yes |
