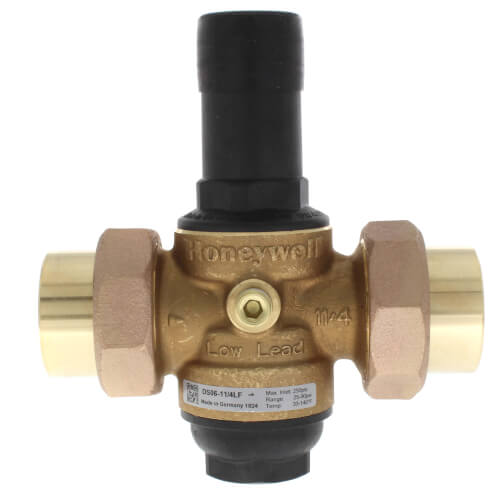

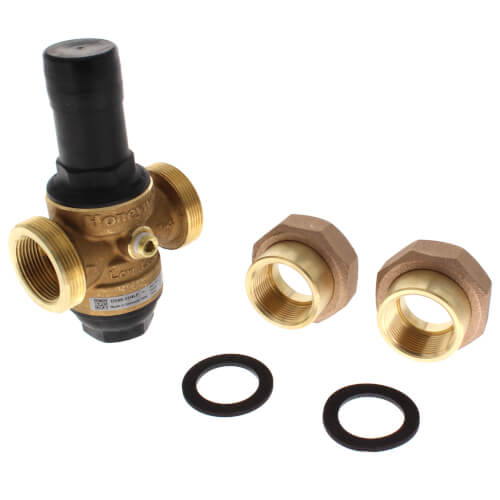

1-1/4" Double Union NPT DialSet Pressure Regulating Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$292.21 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: DS05D1070
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
90 MAX PSI
25 PSI
Union FNPT
Union FNPT
1-1/4"
Description
–
Overview
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Features
Specifications
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Features
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Specifications
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Double-Union Threaded
- Approvals, IAPMO: Listed
Specs
–
| Size: | 1-1/4" |
|---|---|
| Pressure Range: | 25 to 90 PSI |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 90 |
| Max Inlet Pressure: | 250 PSI |
| Outlet Type: | Union FNPT |
| Inlet Type: | Union FNPT |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Gauge: | none |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Union Fittings: | Double-Union Threaded |
| Lead Free: | Yes |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%
Showing 1-2 of 2 reviews
I would not buy this product again
Product has trouble regulating. The first one was terrible and the manufacturer made me prove the low and high side pressures. I was able to install pressure transmitters on supply and downstream pressures. It is supposed to maintain 60 PSI. It would go double and more for a while before gradually returning to set point. Support was nasty to me. I got a replacement after one of my 100 PSI gauges i had used before transmitters was ruined by the excessive pressures. The replacement was not quite as bad. I have installed a pressure relief at 75 PSI and now that limits the peak before the regulator starts to control again. The PDF shows the trend with the spikes and then the spikes clipped by the relief.
Industrial Technician
Oregon
5 months ago
Verified Buyer
Was this review helpful to you?
The best brand of regulator is honeywell
Always reliable , easy to use, and install
Al
Los Angeles
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does this PRV have a bypass ?
Asked by Jeff 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, it does not.
