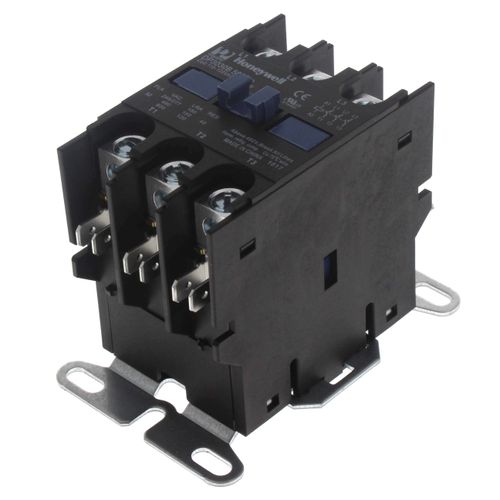

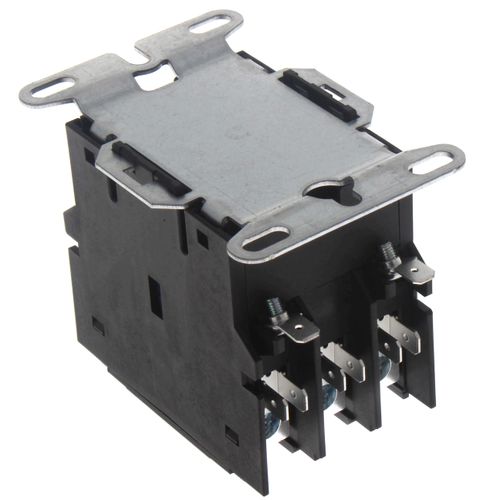

3 Pole, 30 Amp, 120 VAC PowerPro Definite Purpose Contactor, DP3030B5003
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DP3030B5003 has been discontinued
Discontinued October 1, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: DP3050B5002, DP3030B5002
Direct Replacement:
3 Pole, 30 Amp, 120 VAC PowerPro Definite Purpose Contactor, DPL3030B5003
Product Highlights
–
30 Amps
-4°F to 149°F
Description
–
Overview:
These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features:
Meet the most demanding ARI requirement, ARI-780 Standard.
Class H high temperature insulated coils are standard on 3 pole contactors.
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Full array of replacement coils, contact sets and accessories available.
Coil Ratings Voltage: 120 Vac
Poles: 3
Electrical Connections (main): lug connectors
Contact Connections (coil): 1/4 in. quick-connects and #6 screws
Dimensions (in.): 3.1" high x 3.62" wide x 2.4" deep
These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features:
Specs
–
| Amperage: | 30 |
|---|---|
| Coil Ratings: | 120 VAC |
| Poles: | 3 |
| Switch: | DPST |
| Temperature Range (F): | -4°F to 149°F |
| Application: | PowerPro Definite Purpose Contactor |
