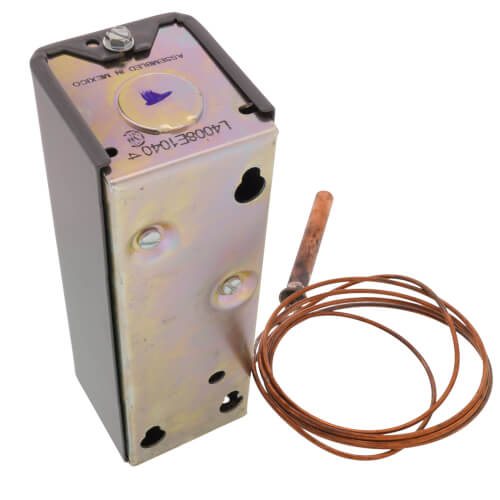

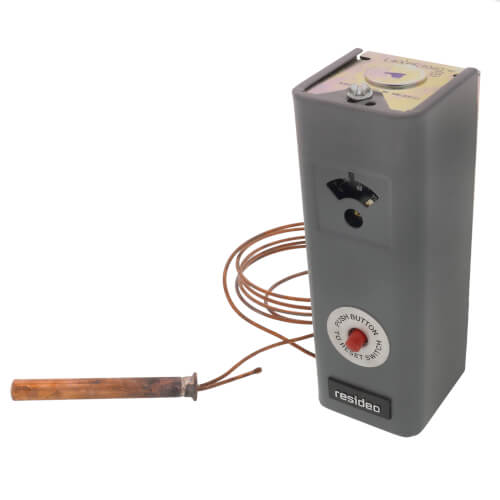

High Limit, Manual Reset Aquastat Controller w/ 130-Degree (F) to 270-Degree (F) Operating Temp
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$136.33 each
In Stock
Get 58 Mon, Apr 3
More Available
Order by 4PM, receive Monday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Manual Reset
SPST, Contacts Break on Temp Rise
Horizontal, Vertical
130°F to 270°F
270°F Max Temp
130°F Min Temp
Description
–
Overview
For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.
Features
Product Specifications
For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.
Features

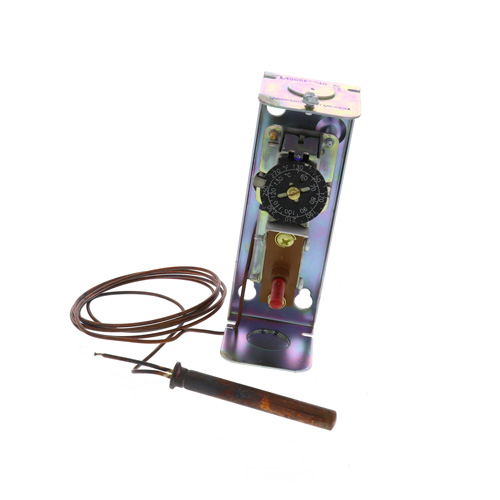

- Remote temperature sensing element detects and responds rapidly to temperature changes.
- Totally enclosed Single Pole Single Throw (SPST) Micro Switch™ snap-acting switch.

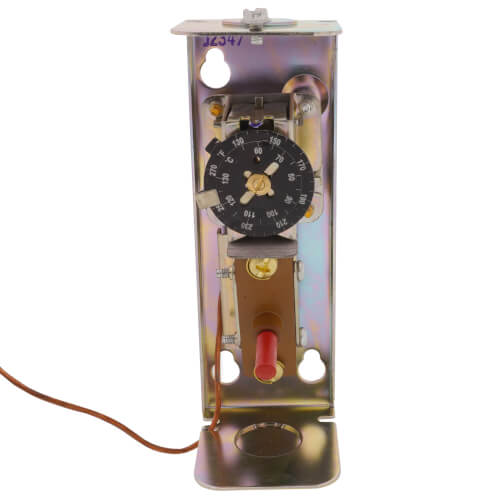

- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted.
- UL and CSA listed limit device.
Product Specifications
- Hazmat Information: UN 1294, TOLUENE, 3, II
- Application: High Limit; Manual Reset
- Dimensions (in.): Case--5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
- Dimensions (mm): Case--143 mm high x 51 mm wide x 54 mm deep
- Comments: Stop factory set at 250 F
- Mounting: Horizontal or Vertical
- Electrical Ratings: Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
- Approvals, Underwriters Laboratories Inc.: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Approvals, CSA: Certified: File No. LR95329-1
- Operating Temperature Range (F): 130 F to 270 F
- Operating Temperature Range (C): 54 C to 132 C
- Bulb Size (in.): 3/8 in. x 2 7/8 in. copper
- Bulb Size (mm): 10 mm x 73 mm copper
- Differential Temperature (F): Manual Reset
- Differential Temperature (C): Manual Reset
- Switching Action: SPST, contacts break on temperature rise.
- Capillary Length (in.): 66 in. (5-1/2 ft)
Specs
–
| Application: | High Limit Manual Reset |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 66" |
| Temperature Range (F): | 130°F to 270°F |
| Mount: | Horizontal Vertical |
| Differential: | Manual Reset |
| Switch Action: | SPST Contacts Break on Temp Rise |
| Max Temp (F): | 270°F |
| Min Temp (F): | 130°F |
