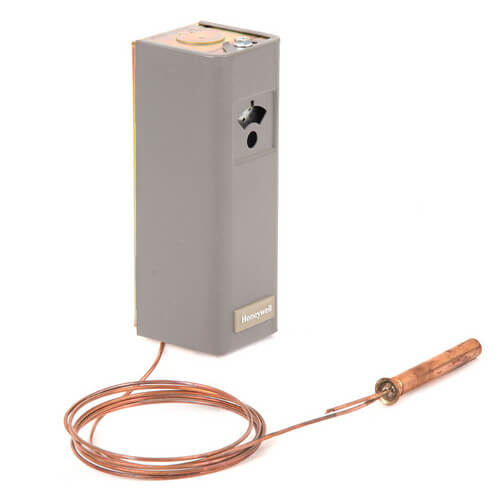

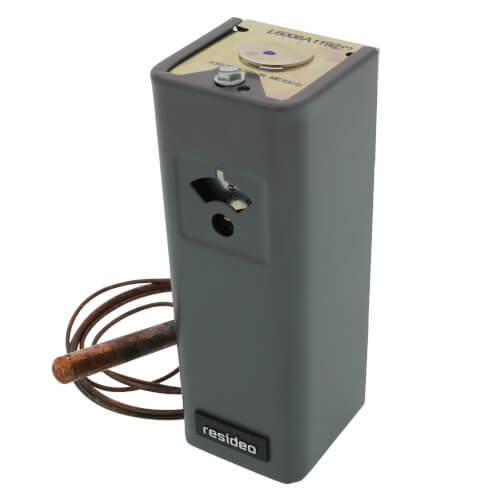

Low Limit & Circulator Remote Bulb Aquastat, 100-240-Degree(F) range, 5-30-Degree Adj Differential, L6008A1192

Aquastat+ Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.

Features

Remote temperature sensing element detects and responds rapidly to temperature changes.

Totally enclosed Micro Switch+ snap-acting switch.

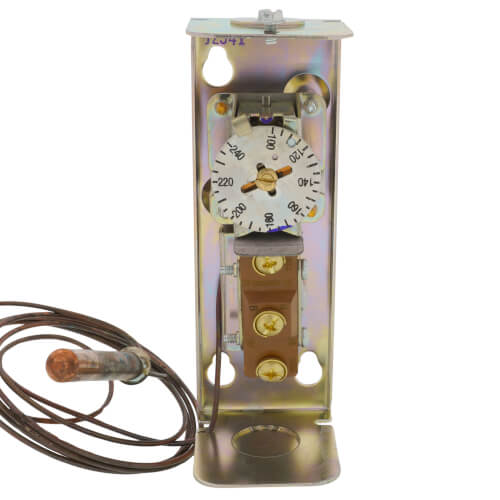

Visible control point scale and external adjustment screw permit easy setting.

Horizontal or vertical mounting of the remote element into boiler, tank, or other container.

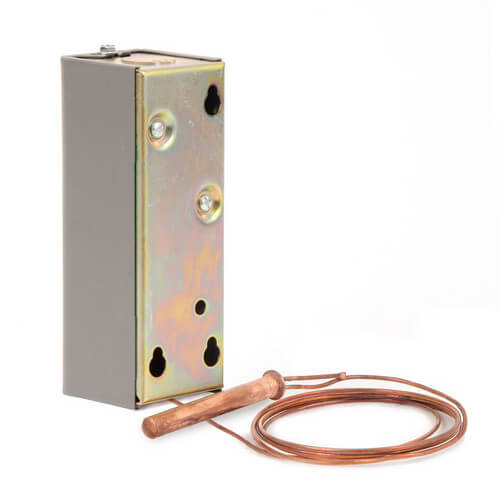

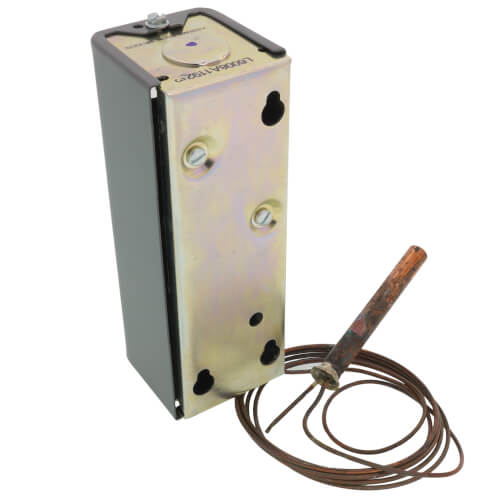

Case mounts to a vertical surface.

Product Specifications

Description : Circulator Control and Low Limit Aquastat Controller with 100 F to 240 F operating temperature, 5 F to 30 F adj. Differential and 66 in. capillary
Application : Circulator Control and Low Limit
Bulb Size (in.) : 3/8 in. x 2 7/8 in. copper
Bulb Size (mm) : 10 mm x 73 mm copper
Capillary Length (in.) : 66 in.
Switching Action : SPDT
Operating Temperature Range (F) : 100 F to 240 F
Operating Temperature Range (C) : 38 C to 116 C
Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL) : 8A @ 120 Vac
Electrical Ratings (AFL) : 5.1A @ 240 Vac
Electrical Ratings (ALR) : 48A @ 120 Vac
Electrical Ratings (ALR) : 30.6A @ 240 Vac
Differential Temperature (F) : 5 F to 30 F adj.
Differential Temperature (C) : 3 C to 17 C adj.
Maximum Ambient Temperature (F) : 150 F
Maximum Ambient Temperature (C) : 66 C
Case Dimensions (in.) : 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm) : 143 mm high x 51 mm wide x 70 mm deep
Mounting : Horizontal or Vertical
Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association : Certified: File No. LR95329-1
Includes : 66 in. capillary
