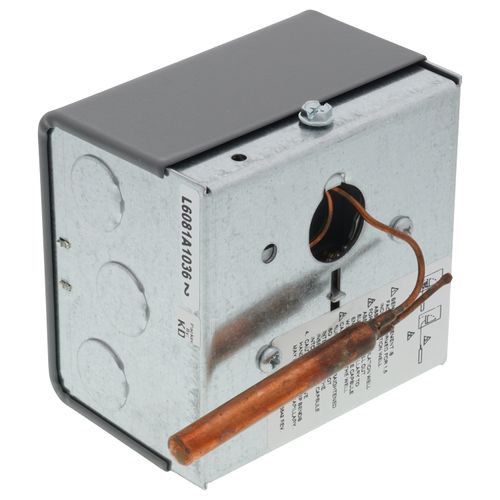

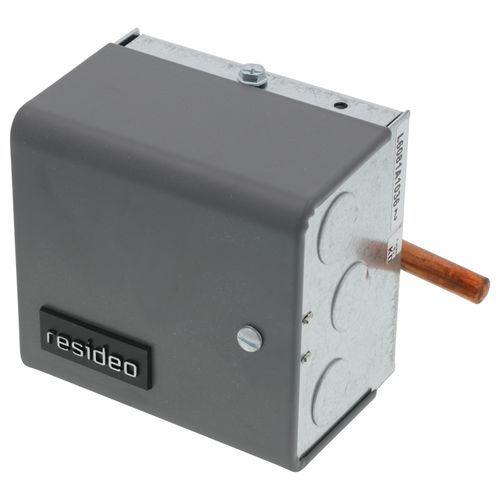

High & Low Limit Aquastat, 10-Degree(F) Fixed, 10-25-Degree(F) Differential, L6081A1036
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$353.04 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: L6081A1010
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Fixed, Adjustable
3-7/8"
2-3/4" Depth
240°F Max Temp
110°F Min Temp
Description
–
High limit, low limit and/or circulator controllers used to regulate boiler water temperature in gas- or oil-fired hydronic heating systems.
Features
Features
- An immersion type liquid-filled sensing element actuates two snap switches.
- One switch operates as a high limit control.
- The other switch operates as a low limit and/or circulator control, depending on the model.
- Controller may be mounted in any positioning and needs no leveling.
- Separate, easy-to-read, calibrated dial and setpoint adjustments for each switch.
- Differential adjustment on low limit or circulator switch.
- All adjustments accessible inside front cover.
- Push-in terminals for quick connecting.
- Single sensing element for easy installation.
- One SPST and one SPDT snap switches act independently at respective temperature settings.
Specs
–
| Application: | High Limit Low Limit |
|---|---|
| Height: | 3-7/8" |
| Width: | 4-1/8" |
| Depth (Inches): | 2-3/4" |
| Max Temp (F): | 240°F |
| Min Temp (F): | 110°F |
| Differential: | Fixed Adjustable |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Great people to deal with
I have used Supply House many times and every time they exceed my expectations. Pricing is reasonable and far less than my local suppliers and shipping is always less time than expected and free because I meet their free freight limit. Overall, if you know the problem, the solution and the parts you need this is the place to go.
homeowner and handyman
Tonasket, WA
5 years ago
Verified Buyer
Was this review helpful to you?
yes I would buy this again
Shipped fast and easy to install. Had to play around to get the dual settings right but works good now.
john
new your
8 years ago
Verified Buyer
Was this review helpful to you?
Top Quality
Honeywell make great HVAC controls. Pex Supply priceing better than my local suppliers. and they had it in stock. used to control air fan and pumps on a remote wood burner boiler.
Plumberman63
Indiana
15 years ago
Verified Buyer
Was this review helpful to you?
Brand new System
The product I bought from Pexsupply is top of the line. My boiler system is 45yrs old & it has a new lease of life. It has never run better. Sounds odd, but I can't wait to see my next Gas bill. After the installation of the Triple Aquastat Control, a boiler test was done & showed it to be 90% efficent, not bad for a 45yr old system. Also, I have never had this good of a bang for my buck, the price was very reasonable.
Thanks
Chris
Chris
Windsor, Canada
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Is a well included and if one is is it 1/2" or 3/4" spud size and what is the insulation length? (L6081A1036)
Asked by Jim 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe L6081A1036 aquastat does not include a well. The 1/2" 121371A and 3/4" 121371B wells are both compatible with it.
Was this review helpful to you?
Q: Product description says: "•The other switch operates as a low limit and/or circulator control, depending on the model. " What model contains circulator control ? The model I am looking at is the L6081A1010/U.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffModels L4081B1013, L4081B1047, and L4081B1096 all contain SPST high limit and circulator switching action.
Was this review helpful to you?
Q: What does differential mean in this context?
Asked by Jack 15 years ago
Add your answer
Verified Reply- PexSupply StaffDifferential is the difference between the high limit and the low limit. For this L6081A1010 model, there is a 10°F fixed differential.
Was this review helpful to you?
Q: does the low limit switch make or break contact on temp rise
Asked by dave 16 years ago
Add your answer
Verified Reply- PexSupply StaffIt breaks contact on temperature rise.
Was this review helpful to you?
