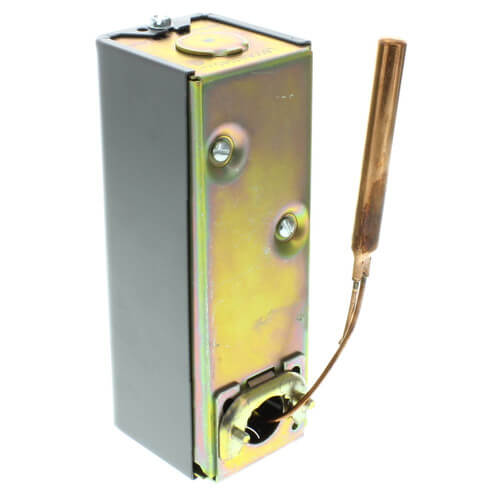

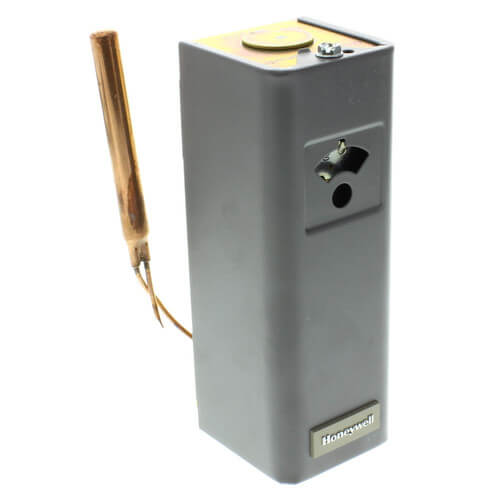

High or Low Limit & Circulator, Horizontal Mount Aquastat, 100-240-Degree(F) range, 5-30-Degree(F) Adj Differential
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$138.55 each
In Stock
Get 291 Mon, Apr 3
More Available
Order by 4PM, receive Monday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac, 8A @ 120 Vac
Adjustable, 5° to 30°F
SPDT
Horizontal
100°F to 240°F
2-1/8" Depth
Description
–
Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.
Features:
Features:
- Totally enclosed Micro Switch snap-acting switches operate on temperature rise to set point.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct, well immersion, or surface mounting of the sensing element available.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Direct or well immersion Tradeline models include heat-conductive compound.
- Select models have wells.
- For high or low limit temperature control of boiler water or liquid in tanks
- Tube of heat-conductive compound (see HC Tube column) included with some models
Specs
–
| Application: | Low Limit High Limit Circulator Control |
|---|---|
| Switch Action: | SPDT |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Ratings (ALR): | 30.6A @ 240 Vac 48A @ 120 Vac |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc 5.1A @ 240 Vac 8A @ 120 Vac |
| Min Temp Differential: | 5°F |
| Differential: | Adjustable 5° to 30°F |
| Max Temp Differential: | 30°F |
| Depth (Inches): | 2-1/8" |
| Height: | 5-5/8" |
| Width: | 2" |
| Max Ambient Temp (°F): | 150°F |
| Well Included: | No |
| Mount: | Horizontal |
| Min Temp (F): | 100°F |
