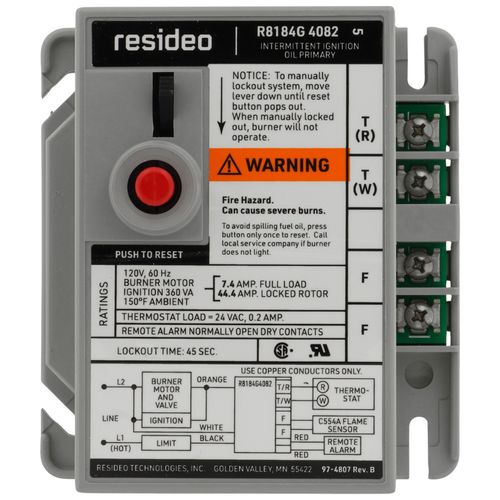

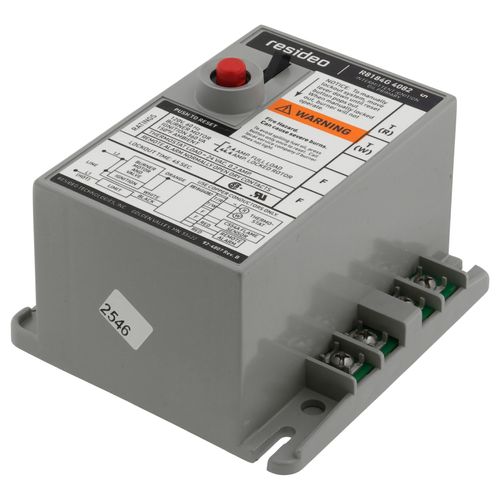

Protectorelay Oil Burner Control with 45 Seconds Lock Out Timing, with Remote Alarm Dry Contacts, R8184G4082
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$205.91 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: R8184G4025
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Provides automatic, nonrecycling control of an intermittent ignition oil burner system.
Specifications
Features
Specifications
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
- Solid state flame sensing circuit.
- LED on terminal strip indicates system lockout.
- Remote lockout indication available on some models.
- Enclosed safety switch with external reset button.
- Manual trip lever opens safety switch for system maintenance.

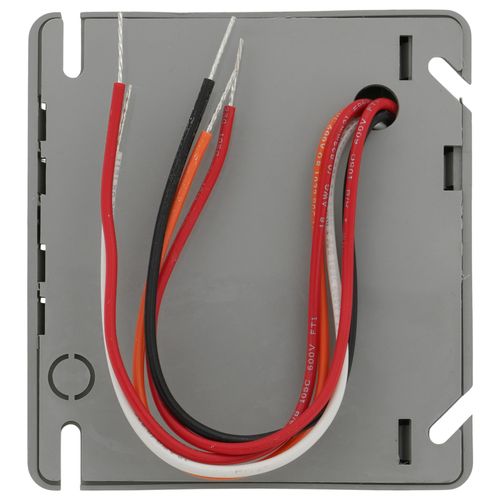

- Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
- C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
Features
- Description: Protectorelay Oil Burner Control with 45 seconds lock out timing
- Ignition Type: Intermittent
- Timing, Safety Switch: 45 sec.
- Mounting Bracket: For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
- Electrical Ratings (Full Load): 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
- Electrical Ratings (Locked Rotor): 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
- Alarm Load Ratings (Pilot Duty): 75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
- Alarm Load Ratings (resistive): 1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
- Dimensions: 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
- Temperature Range: -40 F to +130 F
- Comments: With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing. Includes remote alarm dry contacts.
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Q&A
2 Questions2 Questions
Q: what is the defference between this one and the Honeywell R8184G4009
Asked by rod 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffseems like the only difference is an extra set of contacts for a remote alarm.
Was this review helpful to you?
Q: will this control contact the security people if your burner fails to go on when calling for heat in winter conditions??
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the R8184G4082 does have the alarm contacts you describe.
Was this review helpful to you?
