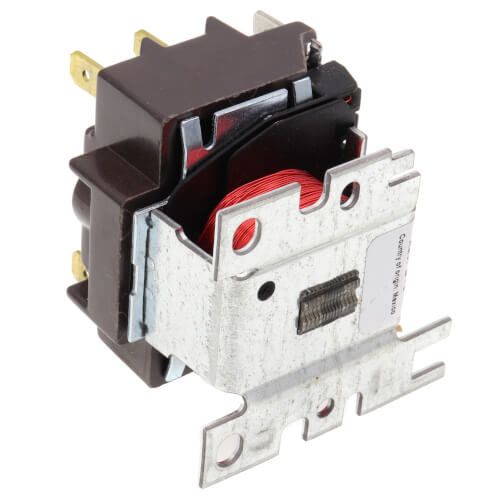

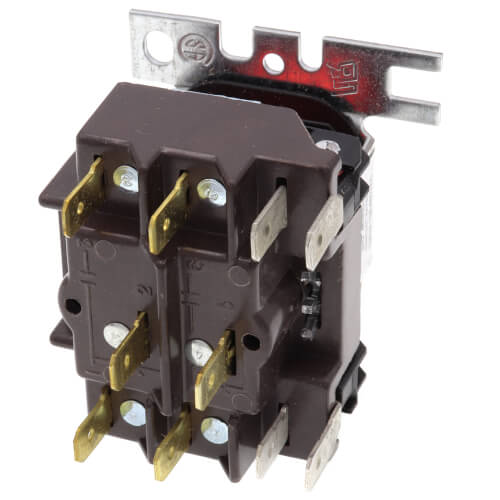

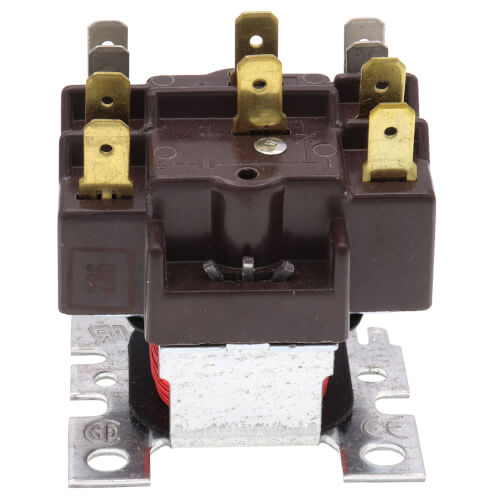

24V General Purpose Relay with DPDT Pilot Duty Switching
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$25.11 each
In Stock
Get 21 Thu, Jun 8
More Available
Order by today, receive Thursday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v
Description
–
Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Specifications
Features
Specifications
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
- Untaped coil assures cooler operation.
- Laminated magnet construction for higher efficiency.
- Base designed for easy replacement of competitive relays.
- Double quick-connect coil terminals.
- Plug compatible with Steveco 90-340 and Mars 90340.
Features
- Description: 24 V General Purpose Relay with DPDT - Pilot Duty switching
- Coil Ratings Voltage: 24v
- Switching: DPDT - Pilot Duty
- Electrical Connections: 18 in. 457 mm
- Electrical Ratings Contacts (Full Load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
- Electrical Ratings Contacts (Locked Rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
- Electrical Ratings Contacts (Resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
- Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
- Frequency: 50 Hz, 60 Hz
- Dimensions: 1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
- Temperature Ratings: -20 F to +155 F
