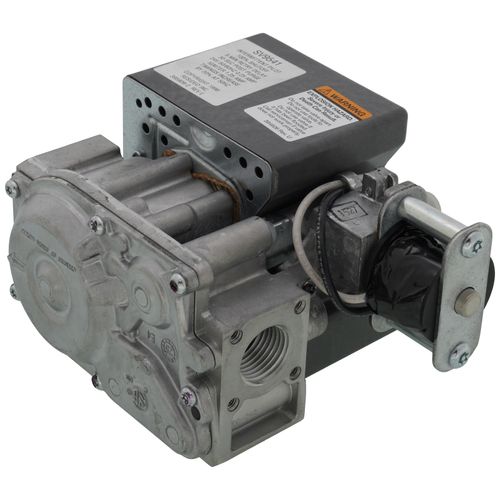

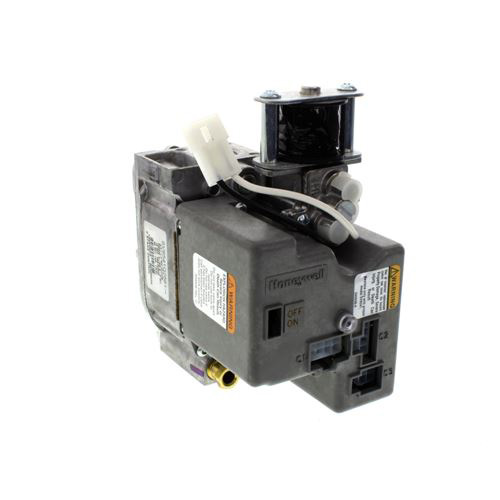

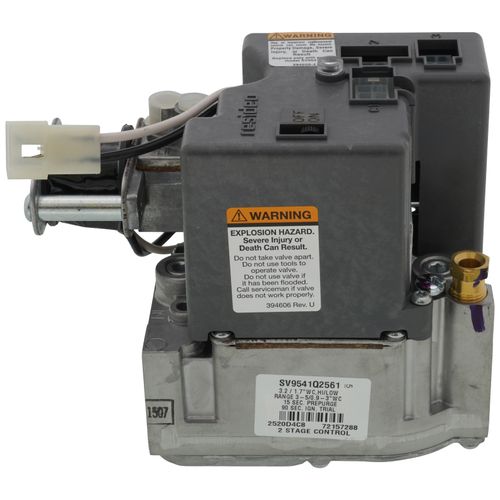

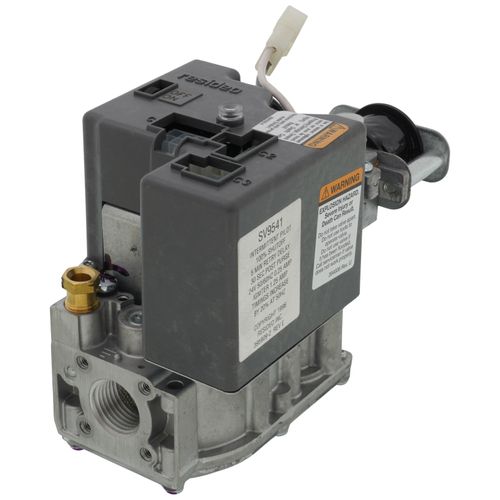

Two-stage Intermittent Hot Surface Pilot Ignition SmartValve Control, SV9541Q2561
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$418.24 each
In Stock
Get 10 Tomorrow, Jun 16
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: SV9541Q3098
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2", 1/2" NPT
1/2"
24V
Intermittent Hot Surface Pilot
Straight-Through
Description
–
Product Overview:
- The TRADELINE® SV9541 SmartValve System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. The Q3450 or Q3480 Pilot hardware supplies the low voltage igniter, flame sensor and pilot burner. These ignition system controls provide all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac or 240 Vac combustion air blower. The controls also monitor the appliance airflow proving switch and limit string to assure proper appliance operation, and provide prepurge, postpurge, and timed trial for pilot ignition with 100 percent shutoff and continuous retry. A diagnostic LED indicates system status.
- These controls communicate directly with an electronic fan timer (ST9160 Electronic Fan Timer for single stage applications; ST9162 Electronic Fan Timer for two-stage applications) in typical forced warm air furnace applications
- They also interface with the 208907 Terminal Board, providing compatibility with power stealing thermostats. Or, they directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, these controls do not provide a postpurge function, because power to the control is removed when the thermostat call for heat ends
- The SV9541 Systems are suitable for a wide range of fan-assisted combustion gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances
- Description: 1/2 in. NPT x 1/2 in. NPT Two-stage Intermittent Hot Surface Pilot Ignition SmartValve Control with standard opening and 1.7 in. wc low / 3.2 in. wc high pressure regulator setting
- Includes: LP Conversion Kit
- Flame Sense: Two Rod
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: continuous retry
- PrePurge: 15 seconds
- Body Pattern: Straight-through
- Opening Characteristics: Standard Opening 2-stage
- Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz.
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in.long
- Dimensions (mm): 81 mm wide x124 mm high x 104 mm long
- Pressure Regulator Setting (psi): 1.7 in. wc low; 3.2 in. wc high
- Pressure Regulator Setting (kPa): 0.42 kPa low; 0.80 kPa high
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
- Maximum Capacity (ft³/hr): 200 ft³/hr
- Maximum Capacity (m³/hr): 5.7 m³/hr
- Minimum Capacity (ft³/hr): 20 ft³/hr
- Minimum Capacity (m³/hr): 0.6 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 150 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 4.2 m³/hr
- Pressure Tapping: 1/8 in. - NPT
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Pilot Gas Outlet: Yes
- Approvals, Canadian Standards Association: CSA-International, Design Certified
Specs
–
| Replaces: | SV9541Q3098 |
|---|---|
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 90 sec |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 1/2" |
| Ignition Type: | Intermittent Hot Surface Pilot |
| Ignition Trials to Lockout: | Continuous Retry |
