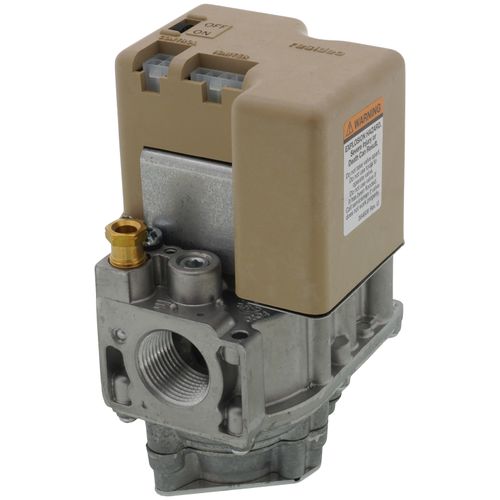

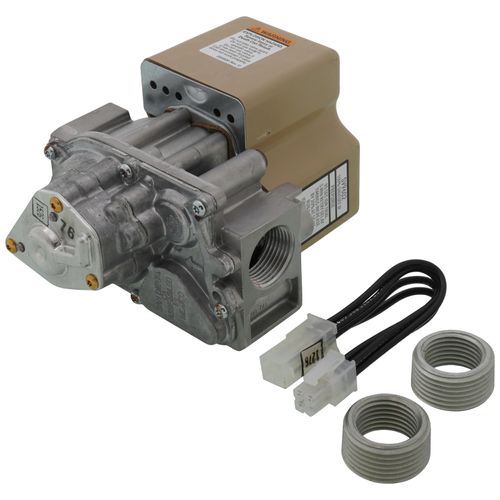

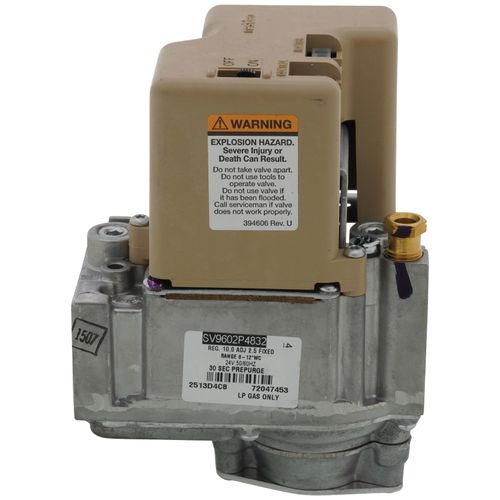

Intermittent Hot Surface Pilot Ignition SmartValve Control - Step Opening, SV9602P4832
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$391.40 each
In Stock
Get 1 Thu, Jun 18
Order by today, receive Thursday
MANUALS (2)
This item replaces: SV9501P2046, SV9602P4113, SV9601P4149, SV9501P2020, SV9502P2135, SV9602P4139, SV9601P4164, SV9502P2119
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane
3/4"
3/4"
24V
Intermittent Hot Surface Pilot
Straight-Through
Description
–
Product Overview:
Product Specifications:
- The SV9602 SmartValve System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. This system is suitable for application in a wide range of gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, space heaters, water heaters, decorative appliances, and commercial cooking units. The specific application of the SmartValve System is the responsibility of the appliance manufacturer.
Product Specifications:
- Description: 3/4 in. NPT x 3/4 in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with step opening and Full Rate: 10.0 in. wc; Step Setting: 2.5 in. wc pressure regulator setting
- Flame Sense: Two Rod
- Type of Gas: LP
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: continuous retry
- PrePurge: 30 seconds
- Body Pattern: Straight-through
- Opening Characteristics: Step Opening
- Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz.
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 50 Hz; 60 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in.long
- Dimensions (mm): 81 mm wide x124 mm high x 104 mm long
- Pressure Regulator Setting (psi): Full Rate: 10.0 in. wc; Step Setting: 2.5 in. wc
- Pressure Regulator Setting (kPa): Full Rate: 2.49 kPa; Step Setting: 0.62 kPa
- Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT.
- Maximum Capacity (ft³/hr): 415 ft³/hr
- Maximum Capacity (m³/hr): 11.8 m³/hr
- Minimum Capacity (ft³/hr): 30 ft³/hr
- Minimum Capacity (m³/hr): 0.8 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 300 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 8.5 m³/hr
- Pressure Tapping: 1/8 in. - NPT
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Approvals, Canadian Standards Association: CSA-International, Design Certified
Specs
–
| Replaces: | SV9601P4164 SV9502P2135 SV9501P2020 SV9602P4139 SV9601P4149 SV9602P4113 SV9501P2046 SV9502P2119 |
|---|---|
| Fuel Type: | Propane |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 90 sec |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
| Ignition Type: | Intermittent Hot Surface Pilot |
| Ignition Trials to Lockout: | Continuous Retry |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
OEM parts at fair prices - again.
OEM parts at fair prices, prompt shipping. I am a repeat customer for heating parts
Dave
Milwaukee, WI
7 years ago
Verified Buyer
Was this review helpful to you?
Great replacement
Hopefully it will last longer than the previous model.
Old Joe
Durango, CO
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: i have a sv9601p 2004 and i am converting the unit to propane can i use this unit or is there another.
Asked by sean 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffwe would need the model & serial# its going into to confirm fitment. its best to call w that info.
Was this review helpful to you?
Q: Does this smart valve replace Honeywell SV9500P2659?
Asked by Ted 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, SV9602P4832 is the recommended replacement for obsolete SV9500P2659 valves.
Was this review helpful to you?
