Product Overview:

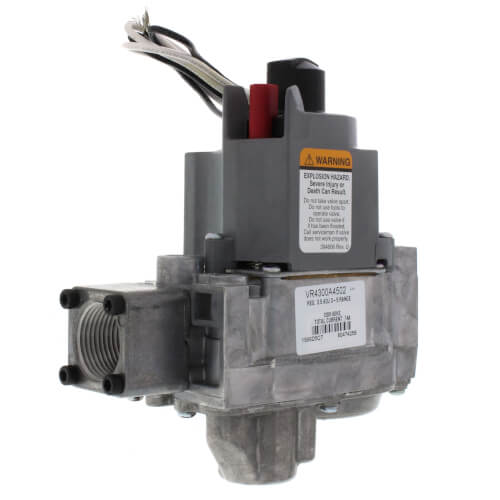

  • Combination gas control for use in 120 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Product Features:
  • Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact size
  • Provides two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shut-off
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • LITE-RITE (OFF-PILOT-ON) lighting sequence

Product Specifications:
  • Description: 120 Vac Dual Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, standard opening and 3.5 in. wc pressure regulator setting
  • Type: Single Stage
  • Ignition Type: Standing Pilot
  • Type of Gas: Natural
  • Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
  • Body Pattern: Straight-through with flange
  • Opening Characteristics (standard, step): Standard
  • Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
  • Pressure Ratings (psi): 1/2 psi
  • Pressure Ratings (kPa): 3.5 kPa
  • Pressure Regulator Setting (psi): 3.5 in. wc
  • Pressure Regulator Setting (kPa): 0.87 kPa
  • Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
  • Pressure Tapping: 1/8 in. NPT with plug
  • Electrical Connections: 1/4 in. male quick connects; 24 in. (610 mm) leadwire
  • Electrical Ratings: 120 Vac
  • Frequency: 60 Hz
  • Anticipator Setting: 0.13 A
  • Temperature Range (F): 0 F to 175 F
  • Temperature Range (C): -18 C to +79 C
  • Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
  • Includes: Two 3/4 x 1/2 in. reducer bushings, 393691 Natural to LP gas conversion kit, one 1/2" x 3/8" reducer bushing
  • Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006; CGA Design Certified: File No. L2025006

Hide Description
Manuals (1)
Specs
Fuel Type:

Natural Gas

Body Pattern:

Straight-Through with Flange

Voltage:

120v

Capacity (BTU):

300000

Inlet Size:

3/4"

Outlet Size:

3/4"

Ignition Type:

Standing Pilot

×
