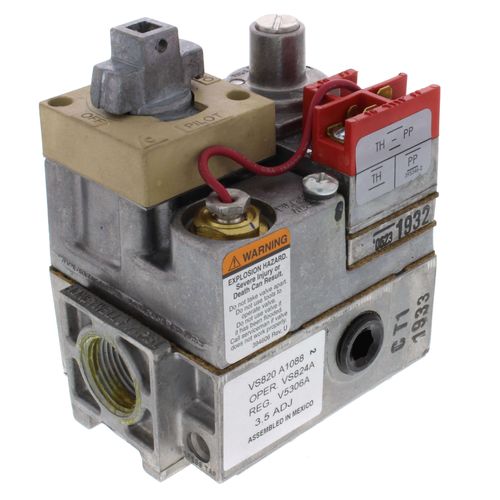

Main product image of Standard PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT, VS820A1088/U

Hover image to zoom

Standard PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT, VS820A1088/U

Name: Standard PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT, VS820A1088/U
Brand: Resideo
SKU: VS820A1088
Price: 457.77 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Brand:

Resideo

SKU:

VS820A1088

Rating:

(3)

Q&A:

(0)

Standard PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT, VS820A1088/U

Hover image to zoom

VS820A1088 has been discontinued

Discontinued July 7, 2023

This product was discontinued by the manufacturer.

MANUALS (3)

Replacement Parts

Licensed Contractor Required

–

This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.

Suggested Alternative:

3/4" X 3/4" Universal Gas Valve, 750 Mv

Brand:

White Rodgers

SKU:36C03U-433

(17)

Order by today, receive 13 by Tuesday

VIEW ALTERNATIVE

Product Highlights

–

Natural Gas

3/4"

335000 BTU Capacity

Description

–

Product Overview:

These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mv Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

Product Features:

Includes pilot flow adjustment screw
Easy to install, adjust and service; all adjustments and connections are accessible from top of control
Add separate energy cutoff (ECO) where codes call for dual safety shutoff
Complete safety shutoff on pilot flame failure
LITE-RITE (OFF-PILOT-ON) lighting sequence
ECO connector for V800 models, Part No. 392451-1

Product Specifications:

Description: 3/4 in. NPT x 3/4 in. NPT PowerPile Millivolt Combination Gas Valve with 3.5 in. wc adjustable pressure regulator setting
Application: Self-powered automatic control - Use with 750 mV pilot generator
Type of Gas: Natural
Pressure Regulator: Standard
Electrical Ratings: 750 mV
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Body Pattern: Straight-through - multi-tapped with 1/2 in. right and left outlets plugged, except as noted
Pressure Tapping: 1/8 in. npt with plug
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets
Pressure Regulator Setting (psi): 3.5 in. wc Reg. Set/3-5" Adj. Range
Pressure Regulator Setting (kPa): 0.87 kPa
Pressure Ratings (psi): 1/2 psi
Pressure Ratings (kPa): 3.5 kPa
Electrical Connections: Terminal block has 3 combination screw and 1/4 in. quick connect terminals
Temperature Range (F): 32 F to 175 F
Temperature Range (C): 0 C to 79 C
Dimensions (in.): 4 3/4 in. high x 4 1/16 in. wide x 3 3/16 in. deep
Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
Approvals, Underwriters Laboratories Inc: UL Component Recognized
Approvals, American Gas Association: AGA Design Certified: File no. L2025003
Approvals, Canadian Gas Association: CGA Design Certified: File no. L2025003
Includes: One 1/2" x 3/8" reducer bushing, two 3/4" x 1/2" reducer bushings, one natural to LP conversion kit, remote rod adapter
