$66.94 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
This item replaces: AP10698PH, SP610140
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
5500 Watts
240v
Description
–

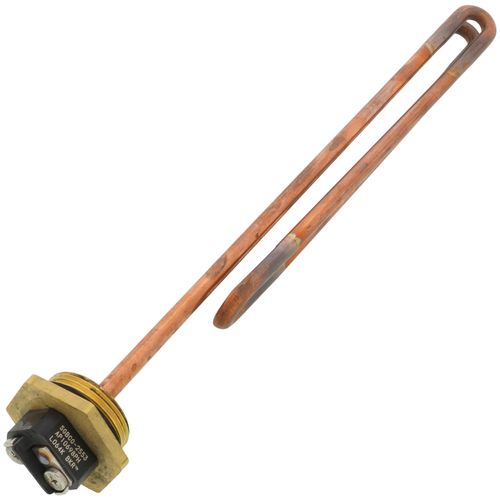

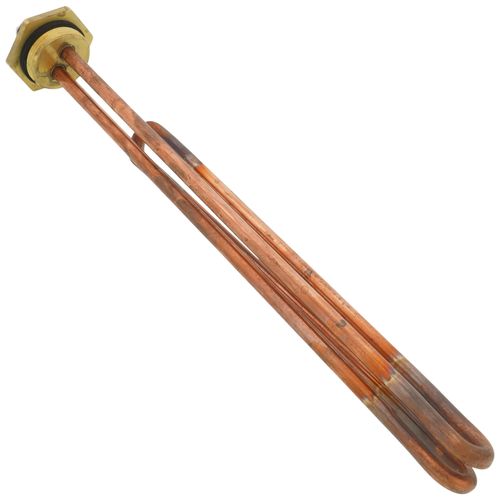

5500W Performer Element (240V)
- Watt Density Classification: MWD
- Input Voltage (V): 240
- Wattage at 240V (W): 5500
- Watt Density at 240V (W/sq. in. ): 118
- Cold Resistance (ohms): 10.6
- Outer Sheath Material: Copper
- Resistored: No
- Configuration: Foldback
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 12.33
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-1/2
- Nominal Thread Size - (in.): 1-1/2
- Threads per Inch: 12
- Thread Type Series Designation: UNF
- Hex Head Size - Across Flats (in.): 1-7/8
Specs
–
| Type: | Element |
|---|---|
| Wattage: | 5500 |
| Voltage: | 240v |
