5500W CO UN Element

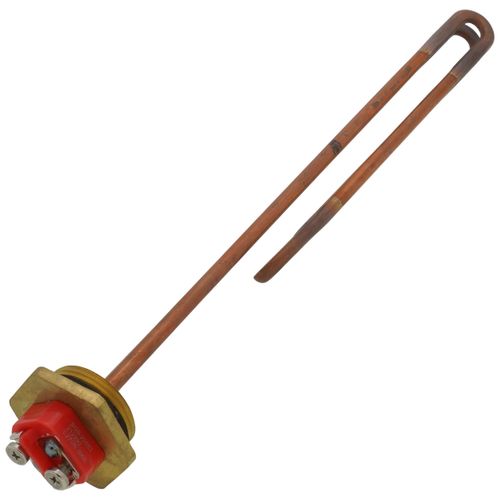

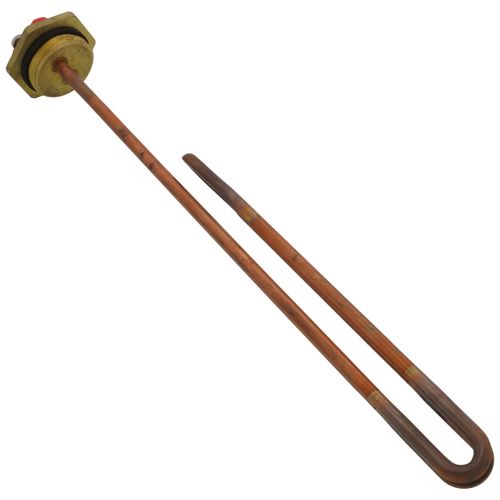

SP610740 5500W CO UN Element
Free Shipping On orders over $99
Need replacement parts for this unit?
- Watt Density Classification: HWD
- Input Voltage (V): 240
- Wattage at 240V (W): 5500
- Watt Density at 240V (W/sq. in. ): 163
- Cold Resistance (ohms): 10.6
- Outer Sheath Material: Copper
- Resistored: No
- Configuration: Foldback
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 12.68
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-1/2
- Nominal Thread Size - (in.): 1-1/2
- Threads per Inch: 12
- Thread Type Series Designation: UNF
- Hex Head Size - Across Flats (in.): 1-7/8
Product Review
Product Q&A
Add-on Item
This item is cost-prohibitive to ship on its own but is available to ship with orders over $200.
Why don't we show the price of this item?
We try to always offer you the lowest prices possible, but some manufacturers require that we only show these low prices once you take further action.
To see the price, simply add the item to your cart or sign in.
Lead Content Warning
This product does not comply with the Safe Drinking Water Act, which requires that products used in any system providing water for human consumption (drinking or cooking) to meet low-lead standards. Please check the box below to confirm you are aware that this item is for non-potable water applications only.
Lead Content Warning
Do not use this item for any installation or repair of potable water applications. This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
