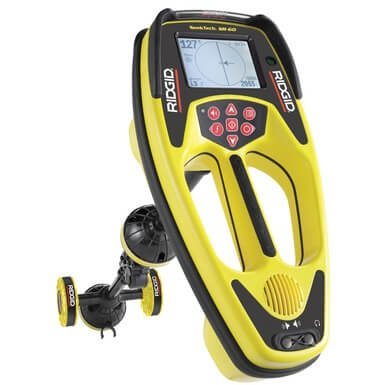

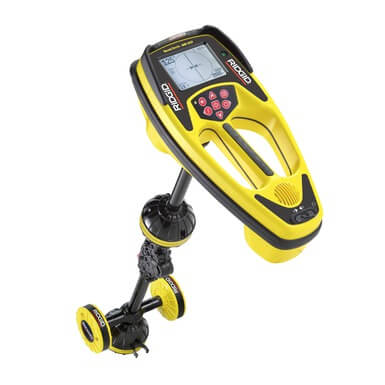

SeekTech SR-60 Locator

The RIDGID SeekTech SR-60 has the largest display and widest frequency range for quickly and easily locating underground cables and pipes. The SR-60 locator quickly and confidently locates under tough conditions including: poor conductors, poor soil conditions and poor grounding.

Features:

• Trace any frequency from 10 Hz to 490 kHz.
• Trace energized lines and sondes (beacons) simultaneously.
• Has all the ease of use and accuracy of the SR-20 but with ALL locatable frequencies.

Specifications:

• Active Line Trace Frequencies: 128 Hz, 1 kHz, 8 kHz, 33 kHz, 51 kHz, 93 kHz, 200 kHz, 262 kHz.
• Passive Power Trace: 50 Hz, 60 Hz, <4 kHz Broadband.
• Passive Radio Trace: 4 kHz-15 kHz, 15 kHz-36 kHz.
• Sonde Frequencies: 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz.
• Power Source: 4 C-Cell batteries (included).
• Battery Life: Approximately 16 hours.
• Meets FCC Class A and EN 55022 Class A requirements.
• 30 user definable frequencies can be set from 10 Hz to 490 kHz.
