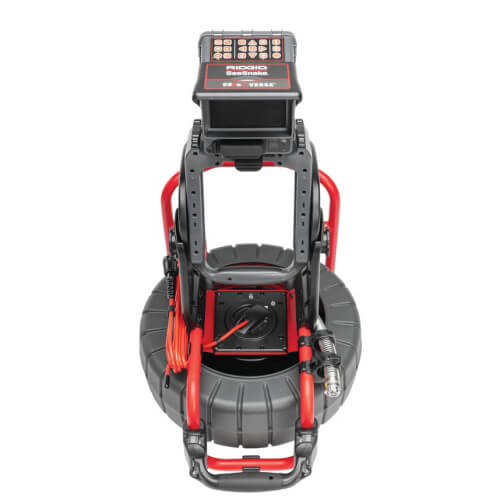

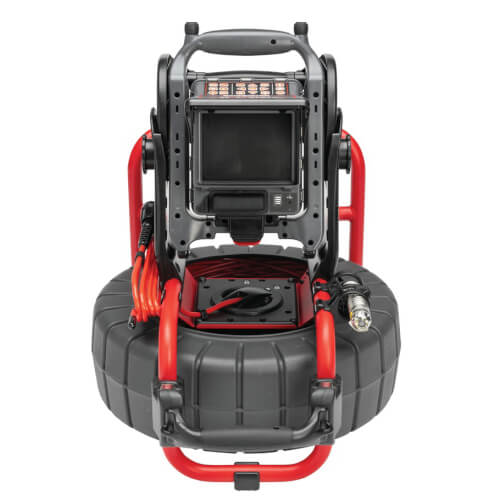

SeeSnake Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100’ (30 m) of push cable with a 2.5” (63 mm) min bend radius. Self-leveling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

Features:

• Quick-release CCU docking system for fast, efficient job set-up
• Flexible push cable for pushing ease through multiple tight turns
• Self-leveling camera for a crisp, clear, in-pipe image that is always upright
• Built-in sonde to locate a point of interest during the pipe inspection

Specifications:

• Line Capacity: 1.5" to 6"
• Push Cable Length: 100'
• Push Cable Diameter: 0.27" with 0.12" Fiberglass core
• Push Cable Bend Minimum Radius: 2.5"
• Camera Type: 1" Self-Leveling
• Resolution: 656 x 492 (NTSC), 768 X 576 (PAL)
• Light Source: 6 LEDs
• Sonde: 512 Hz
• Operating Temperature: 32°F to 104°F
• Storage Temperature: 14°F to 158°F
• Ingress Protection without Monitor: IPx5
