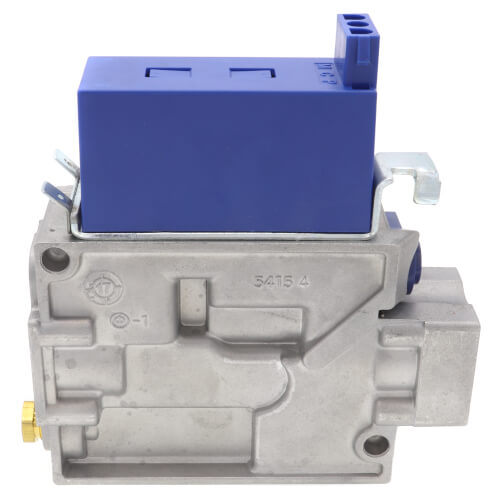

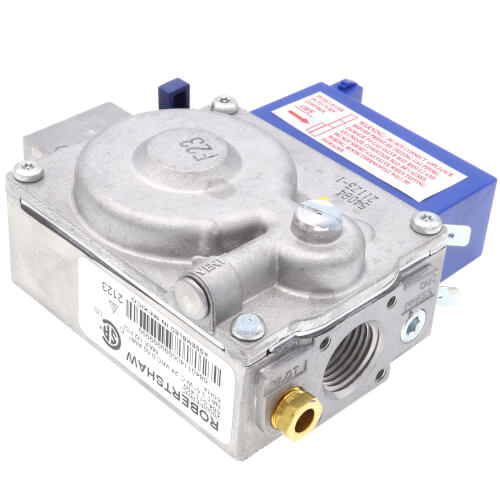

1/2" X 1/2" 24v Intermittent Pilot Hot Surface Ignition Gas Valve (170,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
722-079 has been discontinued
Discontinued July 17, 2023
This product was discontinued by the manufacturer.
MANUALS (1)
Suggested Alternative:
24 VAC Dual Intermittent Pilot Gas Valve, VR8245M2530
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Natural Gas, Propane
1/2"
1/2"
170000 BTU Capacity
24V
Standing Pilot
Description
–
The 722 series gas valve Uni-Kits® are designed for a wide variety of intermittent
pilot, direct spark or hot surface heating applications. They incorporate
dual automatic valves (redundant) that are pressure regulated and
come factory set at 3.5" W.C. for natural gas. They can be converted to L.P.
by installing the regulator conversion kit that is included.

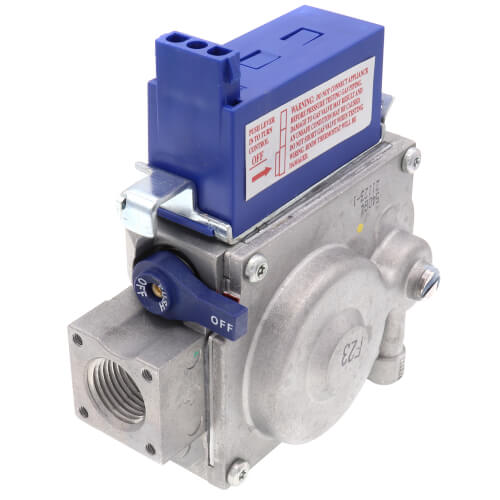

The 722 series gas valves incorporate a manual selector valve ("On-Off"), dual automatic valves, main gas regulator and inlet/outlet pressure taps. All wiring connections and manual selector valve are easily accessible on top of the valve. With a 3-9/16" swing radius, the 722 series lends itself well to replacing many O.E.M. valves.
722 series gas controls can be mounted in any position (except upside down). To prevent unsafe attempts at repair, special screws are used and replacement parts are not available.
The 722 series gas valves incorporate a manual selector valve ("On-Off"), dual automatic valves, main gas regulator and inlet/outlet pressure taps. All wiring connections and manual selector valve are easily accessible on top of the valve. With a 3-9/16" swing radius, the 722 series lends itself well to replacing many O.E.M. valves.
722 series gas controls can be mounted in any position (except upside down). To prevent unsafe attempts at repair, special screws are used and replacement parts are not available.
Specs
–
| Voltage: | 24V |
|---|---|
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
| Pressure Reg Setting: | UNI-KIT |
| Capacity (BTU): | 170000 |
| Ambient Temperature: | -40°F to 175°F |
| Fuel Type: | Natural Gas Propane |
| Ignition Type: | Standing Pilot |
