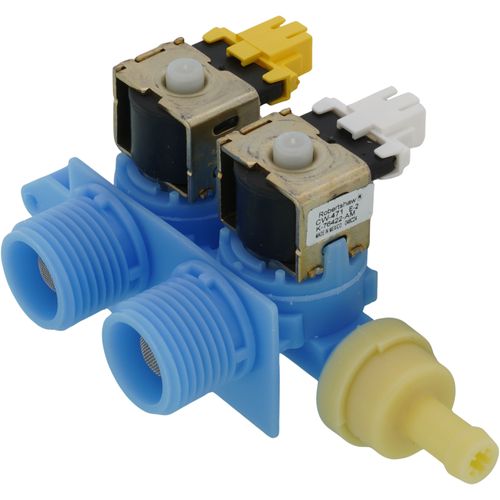

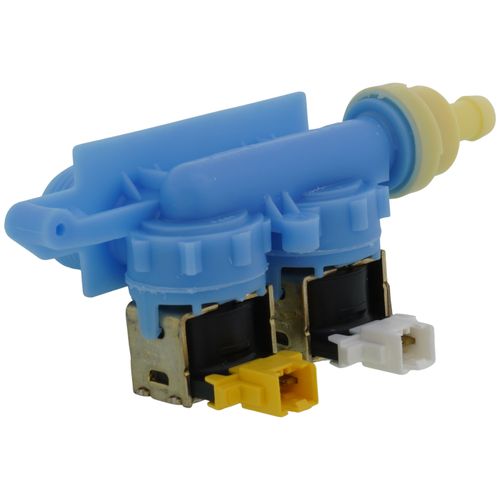

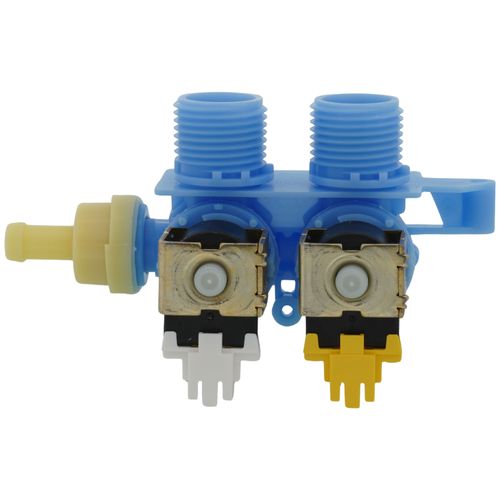

E-2 Clothes Washer Valve (120V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.86 each
In Stock
Get 2 Wed, Jul 8
MANUALS (2)
This item replaces: K-76422-AM
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
3/8"
7.5 PSI
147 MAX PSI
Polypro
120v
Description
–
The Robertshaw® E-1, E-2 and E-2T Mixing Water Valve Series is designed for laundry clothes washer applications. The E-2T E-2 models have flow control in the outlet.
Features:
Specifications:
Features:
- Pilot-operated diaphragm provides high flow capacity with minimum power requirements
- Compact design compared to predecessor valves to allow more flexibility for applications
- Flange mounting with screw boss is molded into the body for ease of installation
- Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces
- Improved coil bobbin design reduces problems
- Slow closing operators reduce water hammer and extend valve life
- Spin-weld assembly minimizes problems caused by loose or missing screws
- Suitable for applications using liquids up to 160°F (71°C)
- Quiet operation
- Stainless steel inlet screens with 60 x 60 mesh
Specifications:
- Series Application Residential Clothes Washer Mixing Water Valve E-2
- Body Material Polypro
- Electrical Rating 120V AC, 50/60 Hz, 5 Watts
- Flow Rate 1.69 to 2.54 GPM
- Inlet Size 3/4" 11.5 NHT
- Operating Pressure 7.5 to 147 PSI
- Outlet 3/8"ID Hose
- Replaces Whirlpool 461970229471 and Whirlpool 8182862
Specs
–
| Frequency: | 60 Hz 50 Hz 60 Hz 50 Hz 50 Hz 60 Hz |
|---|---|
| Application: | Clothes Washers |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/8" |
| Min Pressure (PSI): | 7.5 |
| Max Pressure (PSI): | 147 |
| Material: | Polypro |
| Voltage: | 120v |
| Wattage: | 5 |
| Min Flow (GPM): | 1.69 |
| Max Flow (GPM): | 2.54 |
