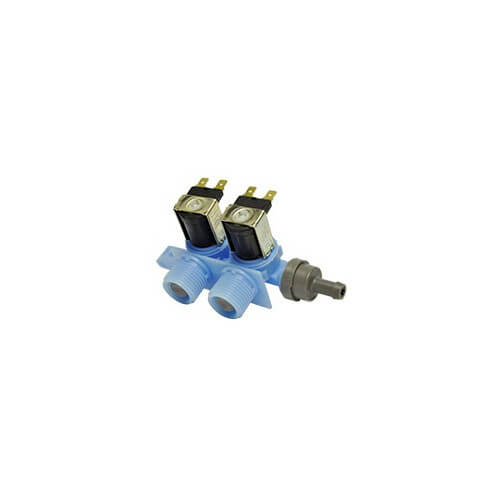

E-2 Clothes Washer Valve (120V)

The Robertshaw® E-1, E-2 and E-2T Mixing Water Valve Series is designed for laundry clothes washer applications. The E-2T E-2 models have flow control in the outlet.

Features:

• Pilot-operated diaphragm provides high flow capacity with minimum power requirements.
• Compact design compared to predecessor valves to allow more flexibility for applications.
• Flange mounting with screw boss is molded into the body for ease of installation.
• Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces.
• Improved coil bobbin design reduces problems.
• Slow closing operators reduce water hammer and extend valve life.
• Spin-weld assembly minimizes problems caused by loose or missing screws.
• Suitable for applications using liquids up to 160°F (71°C)
• Quiet operation.
• Stainless steel inlet screens with 60 x 60 mesh

Specifications:

• Series Application Residential Clothes Washer Mixing Water Valve E-2
• Body Material Polypro
• Electrical Rating 120V, 60 Hz, 5 Watts
• Flow Rate 1.69 to 2.54 GPM
• Inlet Size 3/4" 11.5 NHT
• Operating Pressure 7.5 to 147 PSI
• Outlet 3/8"ID Hose
• Replaces Whirlpool 461970201551 and Whirlpool 8181694
