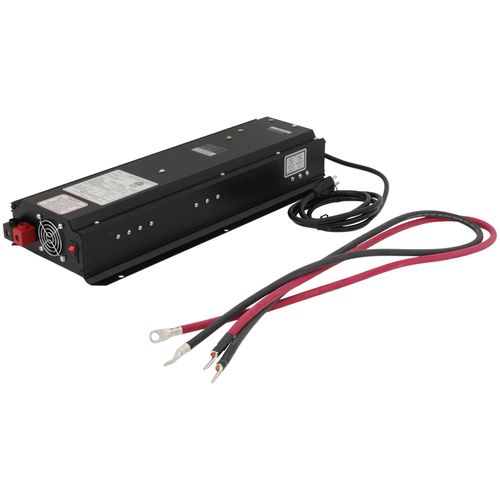

1622 Pump Sentry Backup Auxiliary Power System (Supports up to 3/4 HP Pumps)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (3)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
Note: BATTERY SOLD SEPARATELY
This product is compatible with all pumps up to 15 amps and 33 amps on the start-up.
1622PS Pump Sentry is among the most advanced and reliable sump pump emergency battery backup systems available. It interfaces between a pump and its AC wall outlet. When AC utility power is present, the 1622PS charges a battery and channels power from the wall outlet to the pump while monitoring that wall outlet for power outage. At the moment utility power fails, the 1622PS substitutes its own generated AC power necessary for pump operation by converting energy from the battery. When utility power is restored, the 1622PS automatically switches the pump back to the AC wall outlet's power. At the same time the 1622PS resumes the charging of the battery to return it to full capacity in preparation for the next power failure.
General Application:
To determine compatibility with pump: User should verify that steady state pump current does not exceed 14A
Agency Approvals
- UL STDS. 1778, 1012, & 60950-1
- CAN/CSA STDS. C22.2 #107.3 & #107.2
Features
- Rugged Aluminum Housing
- Power Output Indicator
- Battery Charge State Indicators
- Battery Replace Indicator
- 42A Start Current Capacity (3 seconds)
- Low battery audible alarm
- Battery Cables Included
- Compact Size
- For Wall Mount or Surface Mount Installation
- 2 year Factory Warranty
- Made and Serviced in the USA
Advantages
- Operates Common AC Pumps
- Instant Automatic Power Transfer
- Supports Full Pump Capacity
- Does Not Occupy Sump Pit Space
- Easy Installation- No Extra Plumbing or Wiring
- Silent and Clean Operation
- Monitors Battery and Power Line
- 10 year life expectancy
Pump Compatibility
Operates most effluent & submersible sump pumps with ratings up to 3/4 Hp. manufactured by:
- Zoeller
- Flowtec
- Hydromatic
- Wayne
- Tecumseh
- Stevens
Specs
| Wattage: | 1800 |
|---|---|
| Voltage: | 120v |
| Horse Power: | Up to 3/4 |
| Amperage: | 33 |
| Mount: | Wall Surface |
| Warranty: | 2 Year |
Questions?
Product Reviews
excellent quality
I would buy this product again
Product Q&A
1 QuestionQ: #1 Can your inverters be used for any other use other than pumps, staying below rated output?………#2 Can you use lithium batteries with your inverters?……#3. I have a 3/4 hp pump with specs of 7.5 amps and 900 watts. I assume this is running, not surge. Can I safely use your 822PS or must I go to your 1622PS?….Thank you….GBS
Asked by GBS 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. Yes, these can be used in applications other than pumps so long as it is staying below rated output. Lithium batteries cannot be used. Per SEC America tech support: Technically you should be able to use the 822PS for your application. However, it depends on the nature of the pump. If it is used to move solids the 822PS is not suited due to the periodic demand to push heavy material through the system. Same is true for a well pump which has the tough job of moving heavy columns of water up from the ground. If it is an ordinary sump pump, it should be OK.
