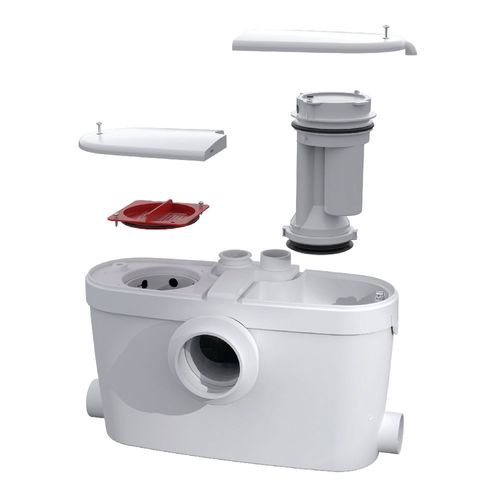

Saniaccess 3 Macerating Pump (White)

The Saniflo 082 Saniaccess 3 is a ½ HP macerating pump designed to install a complete bathroom up to 15 feet below the sewer line or 150 feet away from a soil stack. It efficiently handles waste from a toilet, sink, bathtub, and shower, making it ideal for basement or remote bathroom installations. Key Features

• 1/2 HP motor sealed in oil-filled enclosure
• Stainless steel macerator blades operating at 3600 RPM
• Discharge capacity: up to 15 ft vertically and/or 150 ft horizontally
• Discharge pipe size: 3/4" or 1"
• Two 2" side inlets for additional fixture connections
• 1-1/2" vent connection on top of the unit
• Rotatable discharge elbow with non-return valve
• Dimensions: 10-3/4" H x 18-3/4" W x 6-3/4" D
• Weight: 18 lbs
• 2-year warranty

Compatibility & Applications

• Compatible with Saniflo rear-discharge toilets
• Suitable for full bathroom installations including toilet, sink, bathtub, and shower
• Ideal for residential and commercial settings such as basements, offices, and rental units
• Activates via internal pressure switch when water enters the unit

Maintenance & Troubleshooting

• Dual service access panels allow easy access to electrical components and macerator blades
• Regular descaling recommended to prevent limescale buildup
• If the unit runs continuously, check for blockages or a faulty microswitch
• In case of reduced performance, inspect for obstructions in the impeller or discharge line

Certifications & Compliance

• CSA (IPC, NSPC) certified
• IAPMO (UPC) listed
• Complies with ASME A112.3.4 and CSA B45.9 standards
