24/32/40 Wattage Selectable - 8 Foot T8 LED Bulb - 30/35/40/50/65K CCT Selectable - 120-277 Volt - FA8 Base
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
Product Highlights
Description
SATCO|NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11757 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that securely interlock in the center for continuous illumination. Secure the connection point with the threaded collar, and C-clip to support the extended length from the center. This ballast bypass lamp is also field selectable, offering three wattage options and five CCT options in one convenient unit. In addition, the lamp is built for use in Fa8 lamp holders, and comes with R17d adapter caps, making it versatile for use in a variety of shunted and non-shunted lamp holders.
Features:
- Field Selectable: 3 Wattage and 5 CCT
- DLC Listed when used in Fa8 applications

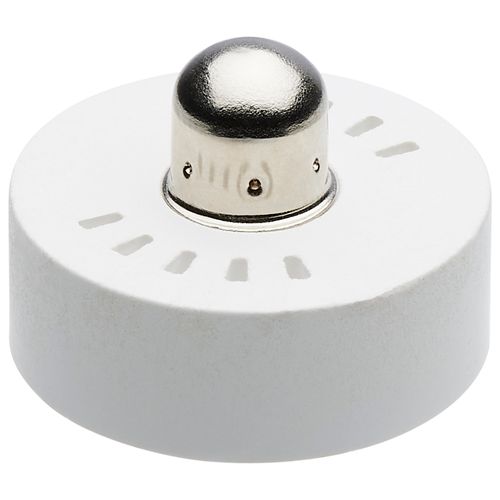

- Optional R17d base caps included
- Includes C-clip for extra support where tubes connect
- PET Coated glass tube
- Compatible with optional 10W emergency driver
- Damp location rated
- Range Voltage 120V-277V
- 210 Degree Beam Angle
- Suitable for use in enclosed fixtures
Specs
| Product Type: | Lamp |
|---|---|
| CCT (Kelvin): | 5000K 3500K 6500K 4000K 3000K |
| Color Temperature: | Soft White Daylight |
| Base Type: | Single Pin |
| Beam Spread: | 210 |
| Material: | Glass |
| Shape: | T8 |
| Lumens: | 3500 4400 5500 |
| Wattage: | 40 32 24 |
| Nominal Length (Inches): | 96" |
| Finish: | White |
| Cri: | 80+ |
| Voltage: | 120v 277v |
| Filament Type: | LED |
| Technology: | LED |
| Warranty: | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
| Lamp Type: | Linear |
| Incandescent Equivalent: | 100W |
