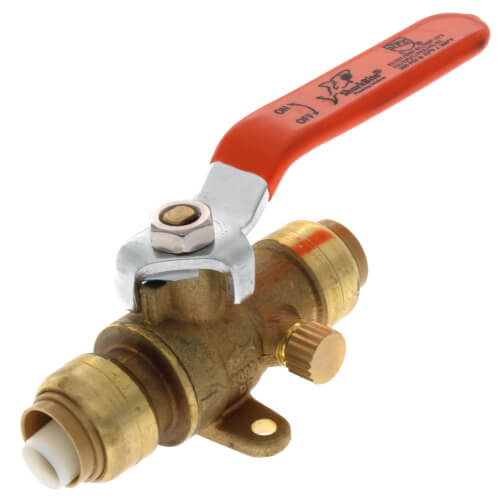

1/2" SharkBite Ball Valve with Drain and Mounting Bracket (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (2)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
Features:
- Instant push-to-connect connections for increased ease of use: No soldering, clamps, unions or glue required.
- Convenient single lever control: Makes them easy to use and encourages shut-off of water supply.
- Full port ball valve: Allows water to flow freely through the valve.
Approvals: IAPMO/ANSI Z1157, NSF/ANSI 61, NSF 372
Specs
| Size: | 1/2" |
|---|---|
| Connection Type: | Push-Fit x Push-Fit |
| Connection Method: | Push-Fit |
| Max Pressure (PSI): | 200 |
| Material: | Brass |
| Application: | Heating Plumbing |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | CPVC OD Controlled Copper PEX |
| Max Temp (F): | 200°F |
| Features: | Bleeder |
| Port Type: | Full Port |
| Lead Free: | Yes |
| Includes: | Mounting Bracket |
| Warranty: | 25 Year |
| Insertion Depth: | 15/16" |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
Makes DIY Jobs Quick & Easy
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Valve body leak
I always have a couple in the service vehicle
These Sharkbite push fit valves are awesome.
I would buy this again
Perfect for what was needed.
Shark bite products Rock.
Great Product. Great price. Fast Delivery
I would buy this product again
Works like a charm!
Valve body leak
magic
Product Q&A
7 QuestionsQ: I put one of these in on a line in my basement that goes to my sprinkler system and when I turn the valve off I get a drip. Is there an easy way to fix it without replacing the valve?
Asked by Serg 10 years ago
Add your answer
It depends where the leak is. If it is leaking from either sharkbite end, it is possible the copper is not fully seated in sharkbite, if that is the case, and your copper has some play, try to insert the copper further into valve. If the copper was cut too short you may need to lengthen by adding a coupling, thereby lengthening pipe to fully insert into valve. If it leaking around the ball valve, or if re-seating copper doesn't work, it may need replaced. *To your success,Kurt***.*****
The valve itself shouldn't leak. Have you checked that the lines in and out were installed according to instructions? Peter Nagourney
I had a drip as well when I connected to water heater. The way I fixed it was by extending the pex tubbing just enough to make it a tight fit from the valve to the water heater. That worked for me. It seemed like the tubbing was to short or short enough to cause the leak. hopefully it works for you. If your using copper try to make the pipe slightly longer. or long enough to make it a tighter fit. Good luck!
When this valve is turned off and you open the small drain cap to allow the water to drain back or out to the low point in the system a small amount of water is expected. If the valve leaks when yu turn it off without opening the cap then it is defective or debris be inside the valve affecting it's integrity. I would turn it on and off while water is flowing 10 times if it still leaks it must be replaced. These valves have no serviceable parts other than the small drain cap. Sent from my iPhone
Q: Will this valve work in a cpvc pipe?
Asked by Anonymous 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, SharkBite fittings are compatible with CPVC (in addition to copper and PEX).
cpvc copper soft and hard and pex it will work on. No pvc or iron
Yes
It should work. I love sharkbite fittings but I have used them with pex pipe and copper, but CPVC outside diameters should be the same.
Shark Bite Valves are designed to work with copper, pex, and cpvc pipe. I have used various sharkbite fittings on copper and pex in my house with great success, and although I have never personally used it on cpvc, it would be the first way I would attempt to connect cpvc pipe based on my previous experience.
Q: I put one of these in on a line in my basement that goes to my sprinkler system and when I open up to drain, I just get a drip. Is there a secret to getting a stead stream to flow out when draining it?
Asked by Ryan 15 years ago
Add your answer
Verified Reply- PexSupply StaffTo get a steady stream, you would need to blow out the lines with compressed air.
Q: I have one of these for my splinker lines and I'm trying to drain the line. When you unscrew the drain screw the water just drips out very slowly. Is there something I should do to get a steady stream or is it just supposed to drip?
Asked by Ryan 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt will only drip unless you blow the line out with compressed air. Using compressed air would give you more of a steady stream.
Q: Not to sound like an idiot, but is the drain valve for blowing air through it or draining water. I'm looking at putting one just before a garden hose bib.
Asked by Mack 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is normally used for draining water.
The drain value is used to drian the water between the the valve and the faucet. I used on the hot and cold water in my garage wash tub. During the winters I shutoff and drian, spring open and ready to go.
Q: Can this Valve be used with copper tubing
Asked by T-Bone 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it can.
Yes
Q: Does the drain on this ball valve automatically remove air out of the line? Or do you have to open this fitting several turns? Thanks, John
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is not automatic.
