Product Highlights
–
1"
Brass
PEX, CPVC, Copper
Push Fit
Description
–
Note: Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).

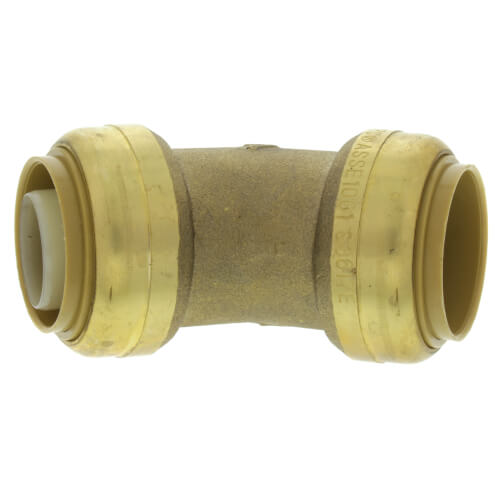

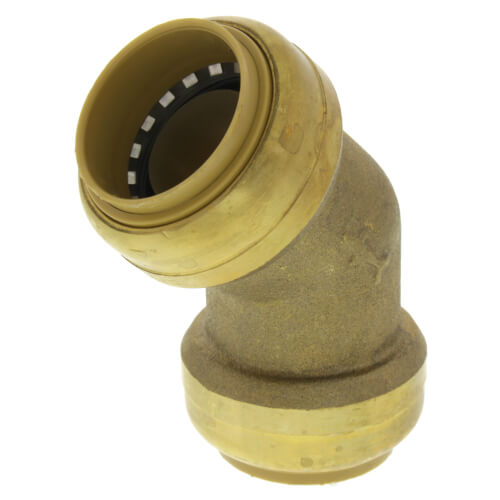

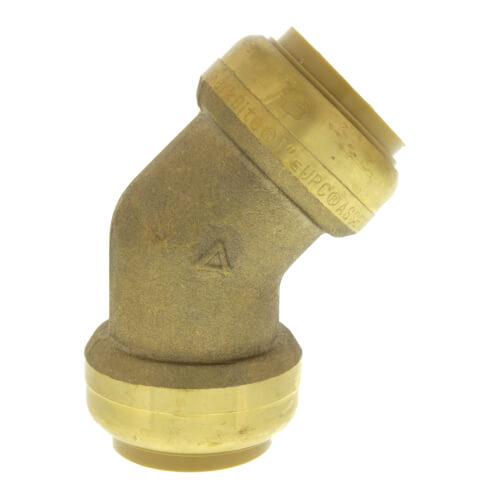

SharkBite 45-Degree Elbows allow the user to connect any combination of copper, PEX CPVC, or PE-RT pipe together to form a 45-degree connection. These are ideal for hard piping applications where a 90-degree bend is too much. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi.
SharkBite 45-Degree Elbows allow the user to connect any combination of copper, PEX CPVC, or PE-RT pipe together to form a 45-degree connection. These are ideal for hard piping applications where a 90-degree bend is too much. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi.
Specs
–
| Size: | 1" |
|---|---|
| Material: | Brass |
| Application: | Heating Plumbing |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | PEX CPVC Copper |
| Insertion Depth: | 1-5/16" |
