UR248 has been discontinued
Discontinued April 30, 2026
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: U248, U248LF
Direct Replacement:

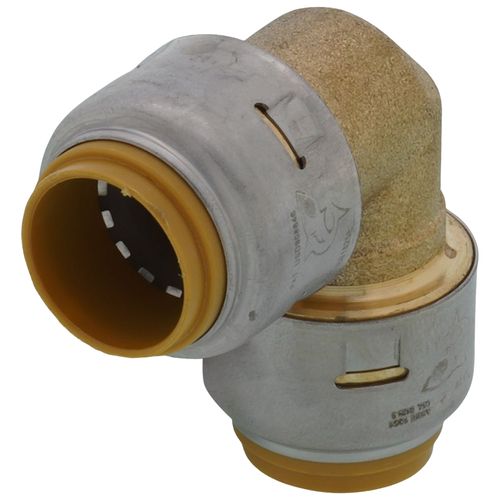

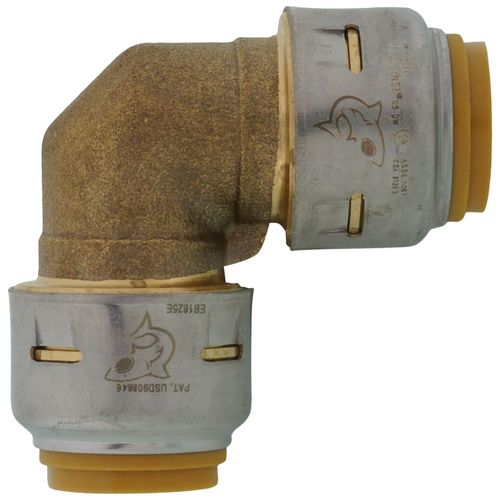

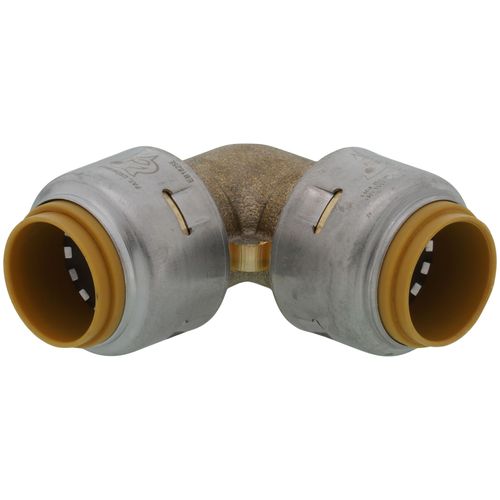

1/2" x 1/2" SharkBite Max 90-Degree Elbow (Lead Free), UR248A
Product Highlights
–
1/2"
Brass
PEX, CPVC, OD Controlled Copper
Push Fit
NSF Standards Met
250 psi
Description
–
The SharkBite Max 90-degree elbow offers an innovative push-to-connect design for quick and easy installation when connecting two pieces of potable water pipe. Ideal for working in tight spaces, the 90-degree brass push-to-connect elbow can be installed in wet lines with no special tools, crimping, soldering or glue required. Faster install time and ease of use reduces installation errors.
Product Features
Product Features
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Half the insertion effort, double the burst pressure.**
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- High-performance DZR lead-free brass body.
- No special tools, crimping, soldering or glue required.
- Can be rotated after installation.
- No tube liner required for PEX.
- Rated to 200°F and 250 psi.
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
- 5-year warranty when properly installed with HDPE SDR-9.
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
- Behind-the-wall with no access panels
- Underground when wrapped in silicone tape
Specs
–
| Product Type: | Elbow |
|---|---|
| Size: | 1/2" |
| Pressure Rating: | 250 psi |
| Angle: | 90° |
| Material: | Brass |
| PEX Size: | 1/2" |
| Insertion Depth: | 15/16" |
| Max Temp (F): | 200°F |
| Application: | Heating |
| Max Pressure (PSI): | 200 |
| Standards Met: | NSF |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | PEX CPVC OD Controlled Copper |
| Warranty: | 25 Year |
