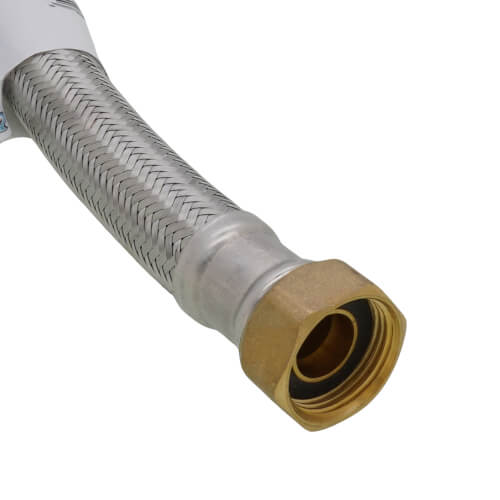

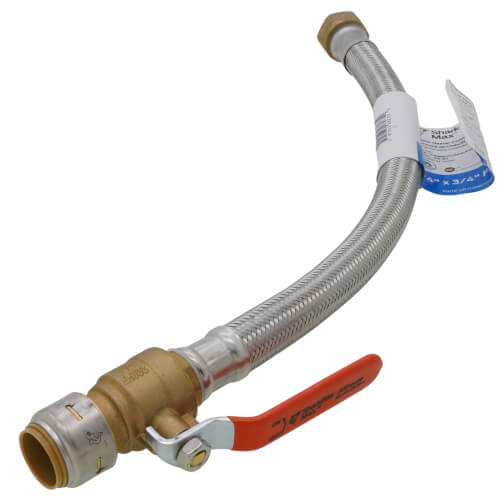

3/4" Sharkbite Max Ball Valve x 3/4" FIP Stainless Steel Braided Water Heater Connector, Lead Free (18" Length)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (2)
This item replaces: PFWC-BV075-18, U3088FLEX18BVLF, 77479, U3088FLEX18BV
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
Stainless Steel
PEX, CPVC, OD Controlled Copper
Push Fit
NSF Standards Met
Push-Fit x FIP Connection
Description
–
SharkBite Max flexible water heater connectors with ball valves allow you to work in tight spaces and easily connect water heaters with existing pipes that don't line up. Integrated ball valve allows the water heater supply to be shut off. Approved for use on electric or gas water heaters with a flue vent. Innovative design reduces the need for extra joints or fittings allowing for faster install time.
Product Features
Product Features
- Fastest way to install a water heater with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
- Can be installed on wet lines and pressure tested immediately.
- Stainless steel retainer adds strength and durability.
- Fitting body is high-performance DZR lead-free brass.
- No special tools, crimping, soldering or glue required.
- Can be rotated after installation.
- No tube liner required for PEX.
- Rated to 140°F and 200 psi.
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
- 5-year warranty when properly installed with HDPE SDR-9.
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
- ASME A112.18.6/CSA B125.6
- ASME A112.4.14/CSA B125.14*(189)
- NSF/ANSI 14
- NSF/ANSI/CAN 61
- NSF/ANSI/CAN 372
- *Ball Valve
Specs
–
| Connection Type: | Push-Fit x FIP |
|---|---|
| Length: | 18" |
| Application: | Plumbing |
| Length (Inches): | 18" |
| Size: | 3/4" |
| Material: | Stainless Steel |
| Type: | Braided |
| Thread Type: | Female |
| Warranty: | 25 Year |
| Standards Met: | NSF |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | PEX CPVC OD Controlled Copper |
| Lead Free: | Yes |
| Insertion Depth: | 1-1/4" |
| Max Pressure (PSI): | 200 |
| Max Temp (F): | 140°F |
