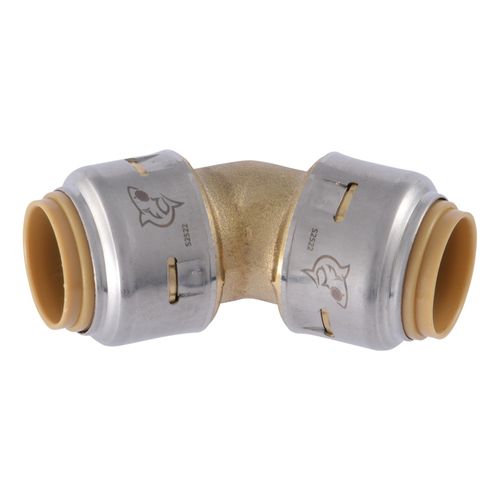

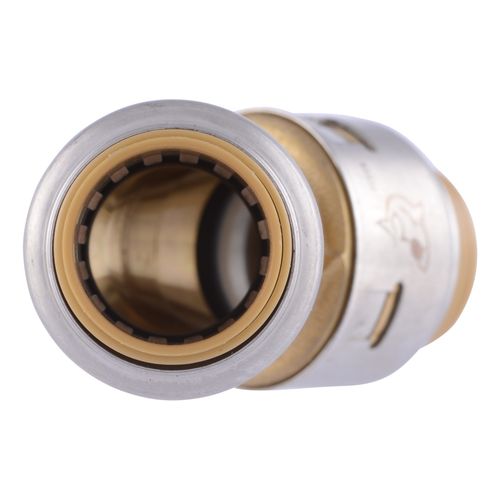

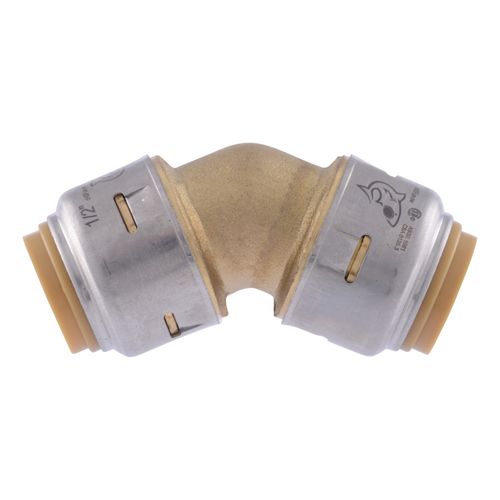

1/2" SharkBite Max 45-Degree Elbow (Lead Free), UR648A

Replaces UR648

Note: Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).

SharkBite Max 45-degree elbows are designed to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe of the same size. Approved for underground and behind-the-wall applications with no access panels, Max 45-degree elbows offer the versatility to be permanently installed or provide a temporary fix while you work and are ideal for working in tight spaces.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
• Half the insertion effort, double the burst pressure.**
• Can be installed on wet lines and pressure tested immediately.
• Stainless steel retainer adds strength and durability.
• High-performance DZR lead-free brass body.
• No special tools, crimping, soldering or glue required.
• Can be rotated after installation.
• No tube liner required for PEX.
• Rated to 200°F and 250 psi.
• 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
• 5-year warranty when properly installed with HDPE SDR-9.
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
