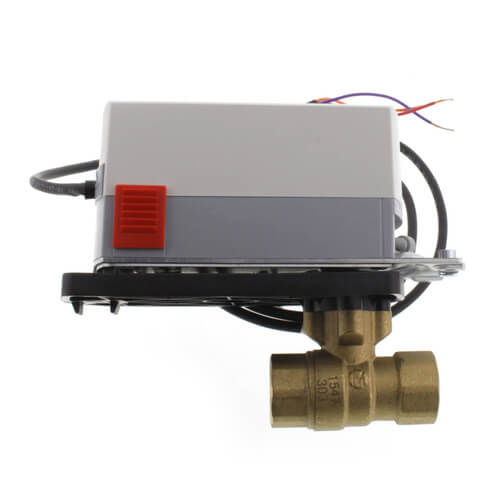

Main product image of 1/2" NPT 2-Way Ball Valve Assembly w/ GDE131.1P Actuator (1.6 Cv)
Magnifying glass
Hover image to zoom

1/2" NPT 2-Way Ball Valve Assembly w/ GDE131.1P Actuator (1.6 Cv)

Brand:
Siemens
SKU:
171A-10303
Rating:
(0)
Q&A:
(0)
1/2" NPT 2-Way Ball Valve Assembly w/ GDE131.1P Actuator (1.6 Cv)
Magnifying glass
Hover image to zoom
$121.96 each
In Stock
In Stock
Get 1 Wed, Jul 8

MANUALS (4)

Product Overview
Specification Sheet
Install Instructions
User Guide
Product Overview
Specification Sheet
Install Instructions
User Guide
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
24 VAC
Product Highlight: Torque
44 lb-in Torque
Product Highlight: Connection Type
FNPT x FNPT Connection
Product Highlight: Body Pattern
2-Way
Product Highlight: Flow Capacity (Cv)
1.6 Cv
Product Highlight: Position
Normally Open

Description

–
This item includes (1) 599-10303 Ball Valve and (1) GDE131.1P Actuator.

The OpenAir GDE Series Direct Coupled 24 Vac Non-spring Return Rotary Electric Actuator is designed for 0 to 10 Vdc or floating control of building HVAC dampers.

Application:
  • Used in constant or variable air volume installations for the control of return air, mixed air, exhaust, and face and bypass, and residential zone dampers requiring up to 20 lb-in (2 Nm) torque. Designed for applications that require the damper to return to a fail safe position when there is a power failure.

    Features:
    • Compact design
    • Easy-to-see position indicator
    • Self-adapting capability for maximum flexibility in damper positioning
    • UL, cUL, CE listed
    • Quiet, low-power operation
    • Rated NEMA 2
    • Assembled in the U.S.A.
    • Manual override Options
    • Independently adjustable dual auxiliary switches
    • Adjustable start/span
    • Plenum cable
    • Universal mounting plate accommodates different actuator sizes
    • Variety of ball sizes and flow coefficients minimizes the need for downsizing pipes
    • Industry leading shutoff accurately controls fluid through coils
    • Actuator and plate can be rotated to facilitate installation and wiring
    • Standoffs provide a thermal barrier between the actuator and the mounting plate
    • Plastic mounting plate, extensions, and handle do not condensate in chilled or hot water applications
    • Operating handle can manually operate valve in the event of a power failure

Specs

–
Actuator Type:

Floating

Torque:

44 lb-in

Voltage:

24 VAC

Fail Safe Mode:

Non-Spring Return

Connection Size:

1/2"

Connection Type:

FNPT x FNPT

Body Pattern:

2-Way

Flow Capacity (Cv):

1.6

Material:

Brass

Position:

Normally Open
