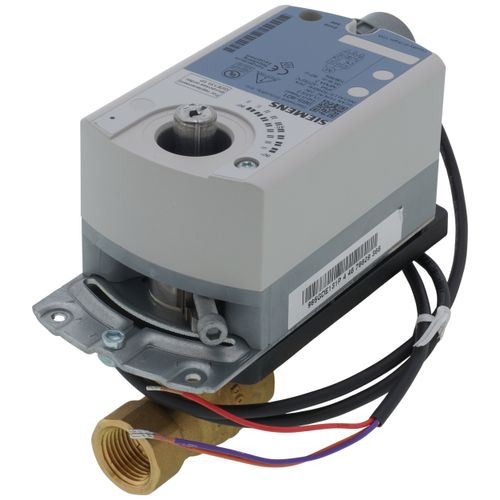

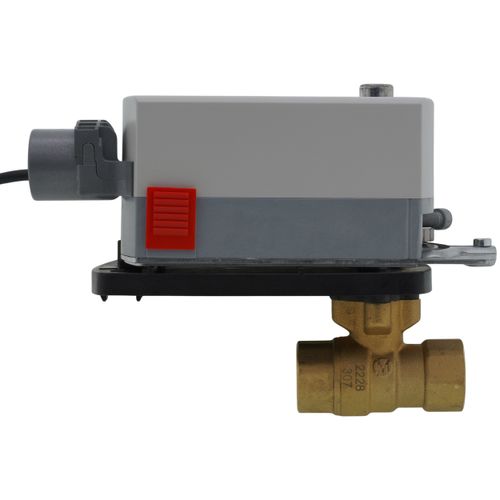

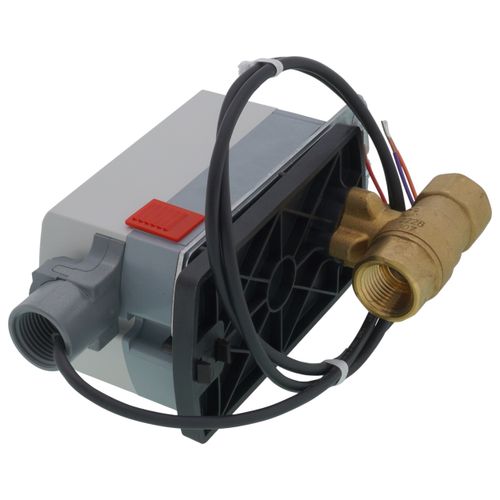

1/2" NPT 2-Way Ball Valve Assembly w/ GDE131.1P Actuator (10 Cv)

1/2" NPT 2-Way Ball Valve Assembly w/ GDE131.1P Actuator (10 Cv)

This 599 Series 2-way ball valve with a floating control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 10 Cv, full port, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

This Assembly Consists of:

• GDE131.1P - Non-spring Return, 44 lb-in (5Nm), 24 Vac, Floating Control, 90sec Run, Plenum
• 599-10307 - 2W 1/2", 10CV ball valve, chrome-plate brass ball, brass stem, 200psi close-off

Technical Specifications:

• Valve Body Style: Rotary-Ball
• Port Configuration: 2-Way Normally open
• End Connection: NPT
• Material, valve body: Brass
• Material, inside set: Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
• Medium: Water with anti-freeze , Water
• Leakage rate: ANSI Class IV
• Medium temperature: 35…250 ºF
• Valve Actuator Type: Electronic
• Actuation Style: Rotary
• Supply Voltage: 24 VAC
• Dimensions (W x H x D): 6.69 x 7.63 x 5.38 in
