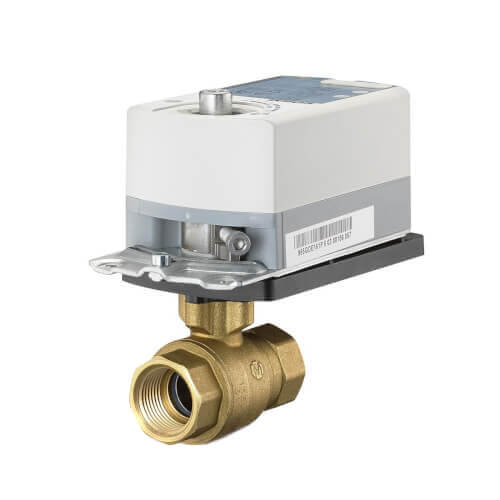

1" NPT 2-Way Ball Valve Assembly w/ GDE161.1P Actuator (10 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$198.36 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24 VAC
44 lb-in Torque
FNPT x FNPT Connection
2-Way
10 Cv
Normally Open
Description
–
1" NPT 2-Way Ball Valve Assembly w/ GDE161.1P Actuator (10 Cv)
This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 10 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.
This Assembly Consists of:
This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 10 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.
This Assembly Consists of:
- GDE161.1P - Non-spring Return, 44 lb-in (5Nm), 24 Vac, 0-10 Vdc Control, 90sec Run, Plenum
- 599-10312 - 2W 1", 10Cv ball valve, chrome-plated brass ball & brass stem, 200psi close-off
- Valve Body Style: Rotary-Ball
- Port Configuration: 2-Way Normally open
- End Connection: NPT
- Material, valve body: Brass
- Material, inside set: Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
- Medium: Water with anti-freeze , Water
- Leakage rate: ANSI Class IV
- Medium temperature: 35…250 ºF
- Valve Actuator Type: Electronic
- Actuation Style: Rotary
- Supply Voltage: 24 VAC
- Dimensions (W x H x D): 6-11/16 x 8 x 5-3/8 in
Specs
–
| Actuator Type: | Floating |
|---|---|
| Torque: | 44 lb-in |
| Voltage: | 24 VAC |
| Fail Safe Mode: | Non-Spring Return |
| Connection Type: | FNPT x FNPT |
| Connection Size: | 1" |
| Body Pattern: | 2-Way |
| Flow Capacity (Cv): | 10 |
| Material: | Brass |
| Position: | Normally Open |
