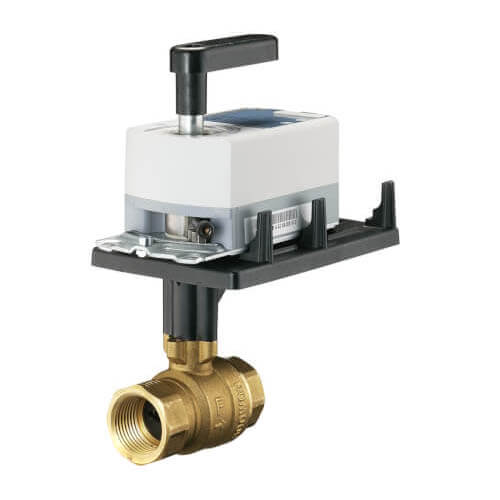

2" NPT 2-Way Ball Valve Assembly w/ GLB161.1P Actuator (160 Cv)

2" NPT 2-Way Ball Valve Assembly w/ GLB161.1P Actuator (160 Cv)

This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 160 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

This Assembly Consists of:

• GLB161.1P - Non-spring Return 88 lb-in (10Nm), 24Vac, 0-10 Vdc Control, 125sec Run, Plenum
• 599-10330 - 2W 2" Ball Valve, 160Cv, chrome-plated brass ball, brass stem, 200psi close-off

Technical Specifications:

• Flow Coefficient, Cv: 160
• Valve Body Style: Rotary-Ball
• Port Configuration: 2-Way Normally open
• End Connection: NPT
• Material, valve body: Brass
• Material, inside set: Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
• Medium: Water , Water with anti-freeze
• Leakage rate: ANSI Class IV
• Medium temperature: 35…250 ºF
• Valve Actuator Type: Electronic
• Actuation Style: Rotary
• Supply Voltage: 24 VAC
• Dimensions (W x H x D): 7-1/2 x 10-1/16 x 5-3/8 in
