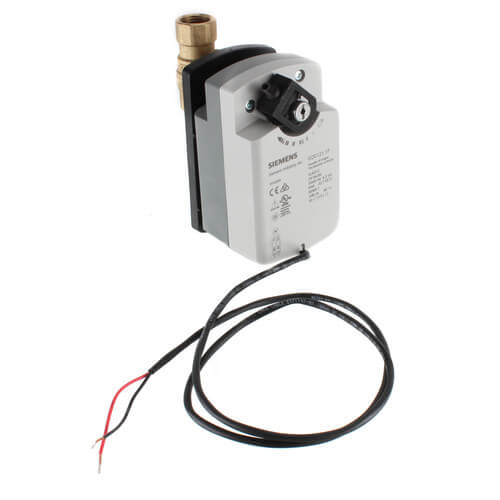

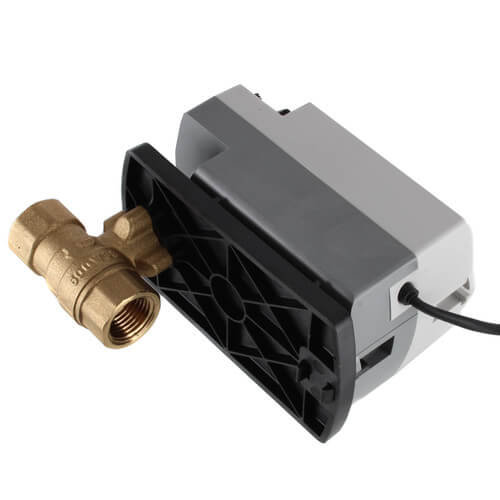

1/2" NPT 2-Way Ball Valve Assembly w/ GQD121.1P Actuator (4.0 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$200.96 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
20 lb-in Torque
FNPT x FNPT Connection
2-Way
4 Cv
Normally Open
Description
–
This item includes (1) 599-10305 Ball Valve and (1) GQD121.1P Actuator.

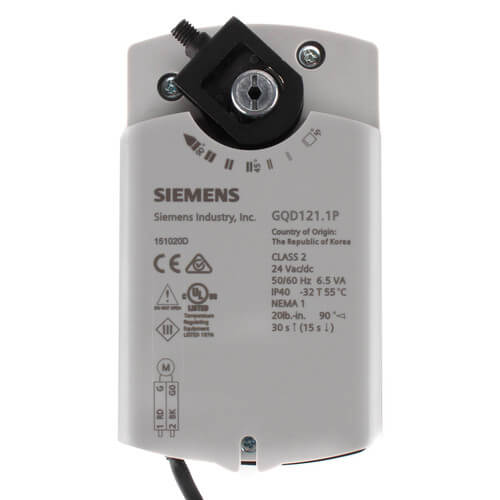

The OpenAir GQD Series direct-coupled spring return electronic actuator is designed for modulating, two-position, and floating control of building HVAC dampers.
Application:
Features:
The OpenAir GQD Series direct-coupled spring return electronic actuator is designed for modulating, two-position, and floating control of building HVAC dampers.
Application:
- Used in constant or variable air volume installations for the control of return air, mixed air, exhaust, and face and bypass, and residential zone dampers requiring up to 20 lb-in (2 Nm) torque. Designed for applications that require the damper to return to a fail safe position when there is a power failure.
Features:
- Bi-directional spring return (fail-safe)
- Pre-cabled
- Plenum-rated models available
- Fast run time
- Available in 20 lb-in (2 Nm) torque
- Signal inversion capability on modulating types (2 to 10 Vdc or 10 to 2 Vdc)
- UL and cUL listed, CE certified
- Compact footprint
- Low voltage models are 24 Vac/dc compatible
- 120 Vac model with 1/2" NPT conduit connection
- Universal mounting plate accommodates different actuator sizes
- Variety of ball sizes and flow coefficients minimizes the need for downsizing pipes
- Industry leading shutoff accurately controls fluid through coils
- Actuator and plate can be rotated to facilitate installation and wiring
- Standoffs provide a thermal barrier between the actuator and the mounting plate
- Plastic mounting plate, extensions, and handle do not condensate in chilled or hot water applications
- Operating handle can manually operate valve in the event of a power failure
Specs
–
| Actuator Type: | 2-Position |
|---|---|
| Voltage: | 24V |
| Torque: | 20 lb-in |
| Fail Safe Mode: | Spring Return |
| Body Pattern: | 2-Way |
| Flow Capacity (Cv): | 4 |
| Connection Type: | FNPT x FNPT |
| Connection Size: | 1/2" |
| Position: | Normally Open |
| Material: | Brass |
