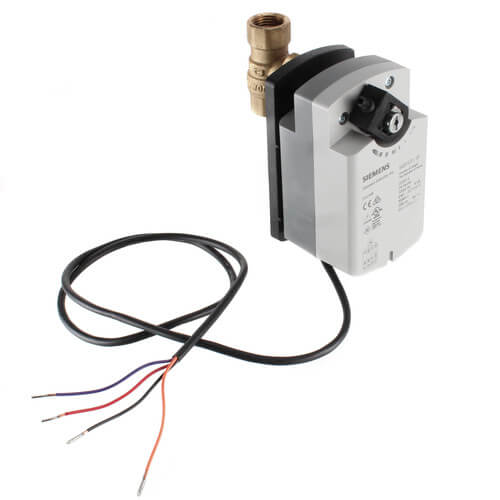

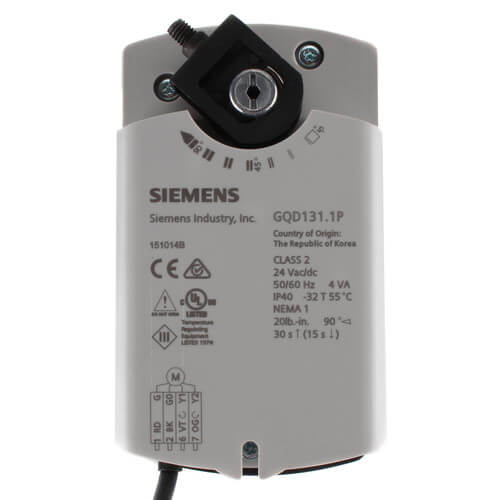

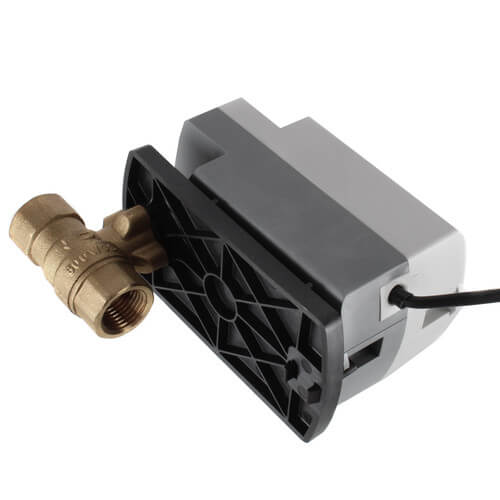

1/2" NPT 2-Way Ball Valve Assembly w/ GQD131.1P Actuator (1.6 Cv)

Brand:
Siemens
SKU:
171J-10303
Rating:
(0)
Q&A:
(0)
1/2" NPT 2-Way Ball Valve Assembly w/ GQD131.1P Actuator (1.6 Cv)
Magnifying glass
Hover image to zoom
$216.00 each
Backorder
Backorder
Get it Tue, Aug 4 - Tue, Sep 1

MANUALS (4)

Product Overview
Specification Sheet
Install Instructions
User Guide
Product Overview
Specification Sheet
Install Instructions
User Guide
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
24V
Product Highlight: Torque
20 lb-in Torque
Product Highlight: Connection Type
FNPT x FNPT Connection
Product Highlight: Body Pattern
2-Way
Product Highlight: Flow Capacity (Cv)
1.6 Cv
Product Highlight: Position
Normally Open

Description

–
This item includes (1) 599-10303 Ball Valve and (1) GQD131.1P Actuator.

The OpenAir GQD Series direct-coupled spring return electronic actuator is designed for modulating and floating control of building HVAC dampers.

Application:
  • Used in constant or variable air volume installations for the control of return air, mixed air, exhaust, and face and bypass, and residential zone dampers requiring up to 20 lb-in (2 Nm) torque. Designed for applications that require the damper to return to a fail safe position when there is a power failure.

    Features:
    • Bi-directional spring return (fail-safe)
    • Pre-cabled
    • Plenum-rated models available
    • Fast run time
    • Available in 20 lb-in (2 Nm) torque
    • Signal inversion capability on modulating types (2 to 10 Vdc or 10 to 2 Vdc)
    • UL and cUL listed, CE certified
    • Compact footprint
    • Low voltage models are 24 Vac/dc compatible
    • 120 Vac model with 1/2" NPT conduit connection
    • Universal mounting plate accommodates different actuator sizes
    • Variety of ball sizes and flow coefficients minimizes the need for downsizing pipes
    • Industry leading shutoff accurately controls fluid through coils
    • Actuator and plate can be rotated to facilitate installation and wiring
    • Standoffs provide a thermal barrier between the actuator and the mounting plate
    • Plastic mounting plate, extensions, and handle do not condensate in chilled or hot water applications
    • Operating handle can manually operate valve in the event of a power failure

Specs

–
Actuator Type:

Floating

Voltage:

24V

Torque:

20 lb-in

Fail Safe Mode:

Spring Return

Connection Size:

1/2"

Body Pattern:

2-Way

Flow Capacity (Cv):

1.6

Connection Type:

FNPT x FNPT

Position:

Normally Open

Material:

Brass
