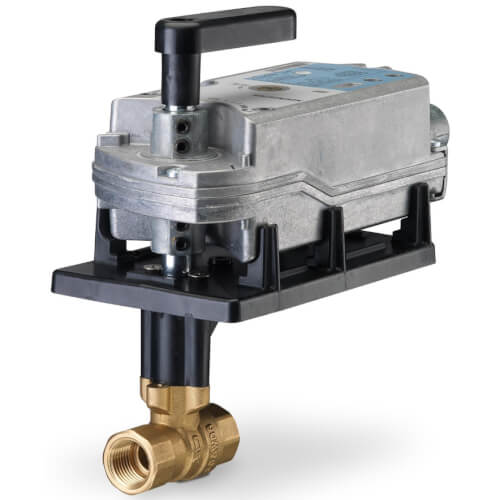

1-1/4" 2-Way Brass Water Mixing Ball Valve Body (16 Cv)

This 599 Series 2-way ball valve with a floating control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/4-inch valve is 16 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Features:

• 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.
• Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem.
• Blow-out proof stem withstands high pressure.
• Universal mounting plate.
• Actuator and plate can be rotated (90-degree increments).
• Standoffs provide a thermal barrier between the actuator and the mounting plate.
• Operating handle for manual operation.
• All ball valve actuators include integral conduit adapters.
