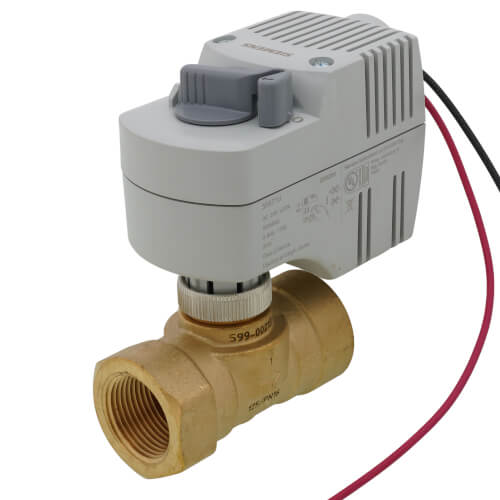

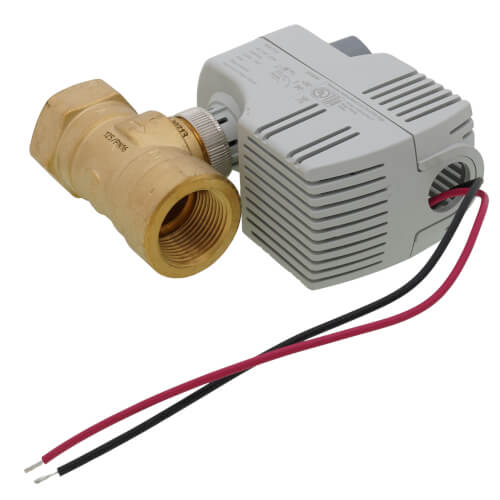

1" NPT 2-Way Normally Closed Zone Valve SR Fail Safe Actuator, 7.0 Cv (24V)

Brand:
Siemens
SKU:
242-00213
Rating:
(0)
Q&A:
(0)
1" NPT 2-Way Normally Closed Zone Valve SR Fail Safe Actuator, 7.0 Cv (24V)
Hover image to zoom

1" NPT 2-Way Normally Closed Zone Valve SR Fail Safe Actuator, 7.0 Cv (24V)

Brand:
Siemens
SKU:
242-00213
Rating:
(0)
Q&A:
(0)
$114.56 each
In Stock
In Stock
Get 1 Thu, Feb 9
More Available
Fast Track Logo
Order by today, receive Thursday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
Voltage icon
24v
Connection Type icon
NPT Connection
Body Pattern icon
2-Way
Flow Capacity (Cv) icon
7.0 Cv
Position icon
Normally Closed
Size icon
1"
Description
The 599 Series Zone Valves work with any SFA/P Series or SSA/P Series electric actuator, or with the STA/P73U Series thermic actuator (See Table 5). The actuators accept one of either 24 Vac or 120 Vac power supplies signal to provide two-position, three-position or 0 to 10 Vdc control. Typical applications include hot or chilled water for zones with radiators; floor heating via manifolds; fan coil units; cooling ceilings (Zone Valves); wall-mounted boilers (zone valves); and VAV applications.

Features:
  • Direct-coupled universal bonnet
  • Direct-coupled installation without tools
  • Manual override with 3mm hex wrench
  • Visual position indication
Specs
Size:

1"

Position:

Normally Closed

Actuator Type:

On/Off

Connection Type:

NPT

Voltage:

24v

Flow Capacity (Cv):

7.0

Body Pattern:

2-Way
