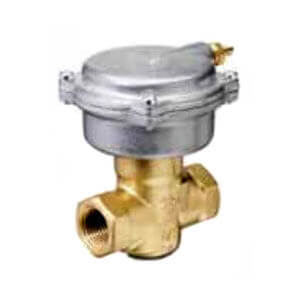

The Powermite 599 Series ANSI Class 250 MT Series 2-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim
- ANSI Leakage Class IV (0.01% of Cv)
- Connection Size: 1/2"
- Body Pattern: 2-Way
- 8-13 PSI
- Connection Type: Female x Female
- 2.5 Cv
- Position: Normally Closed
Image may not reflect actual product
