Description

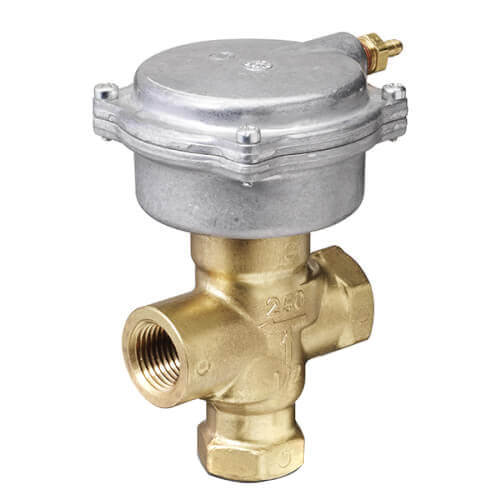

This item includes (1) 599-02070 Valve and (1) 2" Pneumatic Actuator with 8-13 psi.

The Powermite 599 Series ANSI Class 250 MT Series 3-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5 mm) stroke. Typical applications include mixing of hot or chilled water and the control of glycol solutions up to 50%. Compatible actuators deliver a minimum of 67 lb (300 N) of force.

Features:
  • Direct-coupled universal bonnet
  • Female NPT end connections with brass and stainless steel trim.
  • ANSI Leakage Class IV (0.01% of Cv).
Hide Description
Manuals (1)
Specs
Actuator Type:

3-Position

Fail Safe Mode:

Spring Return

Body Pattern:

3-Way

Flow Capacity (Cv):

6.3

Connection Type:

FNPT x FNPT

Connection Size:

3/4"

Material:

Brass

×
