1/2" 3-Way Stainless Steel Linear Mixing Valve Actuator, 8-13 PSI, Female x Female (1.0 Cv)

The Powermite 599 Series ANSI Class 250 MT Series 2-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.

Features:

• Direct-coupled universal bonnet
• Female NPT end connections with either brass trim or stainless steel trim
• ANSI Leakage Class IV (0.01% of Cv)

Specifications:

• Connection Size: 1/2"
• Body Pattern: 3-Way
• 8-13 PSI
• Connection Type: Female x Female
• 1.0 Cv

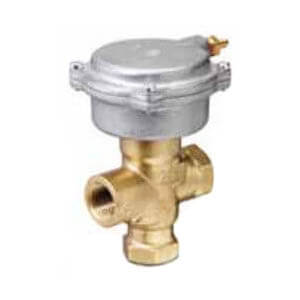

Note: Image may not reflect actual product
