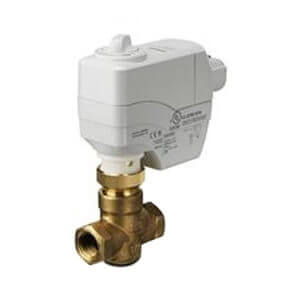

1/2" NPT Powermite MT Series 2-Way N.C. Valve Actuator Assembly, 24Vac, 1.6 Cv
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$197.49 each
In Stock
Get 5 Mon, Dec 11
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v
NPT x NPT Connection
1.6 Cv
Normally Closed
1/2"
Brass
Description
–
The Powermite 599 Series ANSI Class 250 MT Series 2-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.
Product Features
Product Specifications
Product Features
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim.
- ANSI Leakage Class IV (0.01% of Cv)
Product Specifications
- Voltage: 24Vac
- Valve Type: 2-Way
- Trim: Brass
- Position: Normally Closed
- Cv: 1.6
- Control Signal: 0-10V
- Connection: NPT
- Close Off Pressure: 95 PSI
- Actuator: SSC61U
- Nema 1
- Non-Spring Return
- Valve Size: 1/2"
Specs
–
| Size: | 1/2" |
|---|---|
| Position: | Normally Closed |
| Type: | 2-Way |
| Product Type: | Valve Actuator |
| Flow Capacity (Cv): | 1.6 |
| Connection Type: | NPT x NPT |
| Material: | Brass |
| Actuator Type: | Modulating |
| Voltage: | 24v |
| Fail Safe Mode: | Non-Spring Return |
