Description

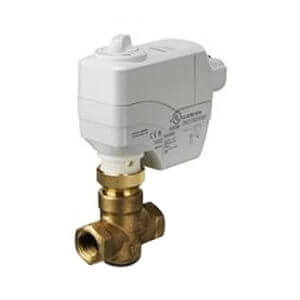

The Powermite 599 Series ANSI Class 250 MT Series 2-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.
Product Features
Product Specifications
Product Features
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim.
- ANSI Leakage Class IV (0.01% of Cv)
Product Specifications
- Voltage: 24Vac
- Valve Type: 2-Way
- Trim: Stainless Steel
- Position: Normally Closed
- Cv: 1.6
- Control Signal: 0-10V
- Connection: NPT
- Close Off Pressure: 90 PSI
- Actuator: SSC61U
- Nema 1
- Non-Spring Return
- Valve Size: 1/2"
