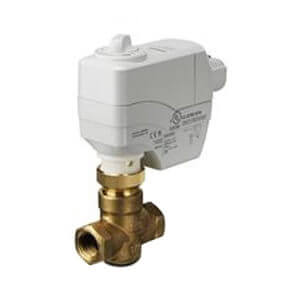

1/2" NPT Powermite MT Series 2-Way N.O. Valve Actuator Assembly, 24Vac, 4.0 Cv261-02041 1/2" NPT Powermite MT Series 2-Way N.O. Valve Actuator Assembly, 24Vac, 4.0 Cv
Free Shipping This item ships free
Need replacement parts for this unit?
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim.
- ANSI Leakage Class IV (0.01% of Cv)
- Voltage: 24Vac
- Valve Type: 2-Way
- Trim: Brass
- Position: Normally Open
- Cv: 4.0
- Control Signal: 0-10V
- Connection: NPT
- Close Off Pressure: 50 PSI
- Actuator: SSC61U
- Nema 1
- Non-Spring Return
- Valve Size: 1/2"
|Flow Capacity (Cv):||
FNPT x FNPT
|Fail Safe Mode:||
