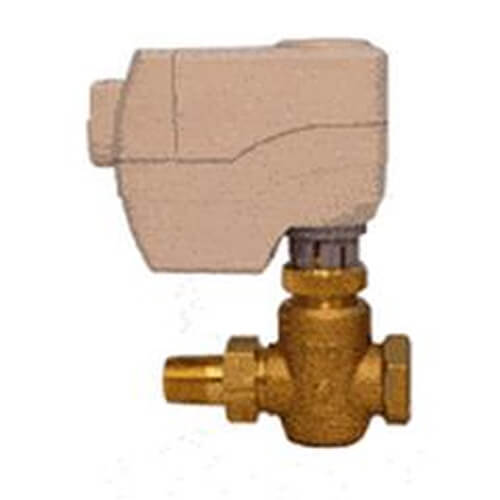

3/4" NPT x Union Male Powermite MT Series 2-Way Mixing N.C. Valve Actuator Assembly, 24Vac, 6.3 Cv262-02013 3/4" NPT x Union Male Powermite MT Series 2-Way Mixing N.C. Valve Actuator Assembly, 24Vac, 6.3 Cv
Free Shipping This item ships free
Need replacement parts for this unit?
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim.
- ANSI Leakage Class IV (0.01% of Cv)
- Voltage: 24Vac
- Valve Type: 2-Way
- Trim: Brass
- Position: Normally Closed
- Cv: 6.3
- Control Signal: 0-10V
- Connection: NPT x Union Male
- Actuator: SSC61.5U
- Mounting: NEMA 1
- Close-Off Pressure: 40 psi
- Spring Return
- Valve Size: 3/4"
