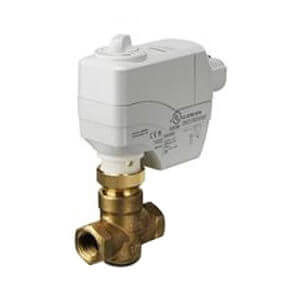

3/4" NPT Powermite MT Series 2-Way Mixing N.C. SS Valve Actuator Assembly, 24Vac, 6.3 Cv
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$300.72 each
Out of Stock
Get it Tue, Oct 10 - Tue, Oct 17
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v
FNPT x FNPT Connection
6.3 Cv
Normally Closed
3/4"
Stainless Steel
Description
–
The Powermite 599 Series ANSI Class 250 MT Series2-way valve bodies work with any MT Series pneumatic orelectronic actuator with a 7/32-inch (5.5-mm) stroke. They are suitable for normally open or normally closed control. Typical applications include control of hot or chilled water, water-glycol solutions up to 50% and steam up to 15 psi (steam only with stainless steel trim). Compatible actuators deliver a minimum of 67 lbs (300 N) of force.
Product Features
Product Specifications
Product Features
- Direct-coupled universal bonnet
- Female NPT end connections with either brass trim or stainless steel trim.
- ANSI Leakage Class IV (0.01% of Cv)
Product Specifications
- Voltage: 24Vac
- Valve Type: 2-Way
- Trim: Stainless Steel
- Position: Normally Closed
- Cv: 6.3
- Control Signal: 0-10V
- Connection: NPT
- Actuator: SSC61.5U
- Mounting: NEMA 1
- Close-Off Pressure: 40 psi
- Spring Return
- Valve Size: 3/4"
Specs
–
| Product Type: | Valve Actuator |
|---|---|
| Type: | 2-Way |
| Actuator Type: | Modulating |
| Size: | 3/4" |
| Position: | Normally Closed |
| Connection Type: | FNPT x FNPT |
| Flow Capacity (Cv): | 6.3 |
| Voltage: | 24v |
| Fail Safe Mode: | Spring Return |
| Material: | Stainless Steel |
| Close Off Pressure: | 40 psi |
| Features: | NEMA 1 |
