Description

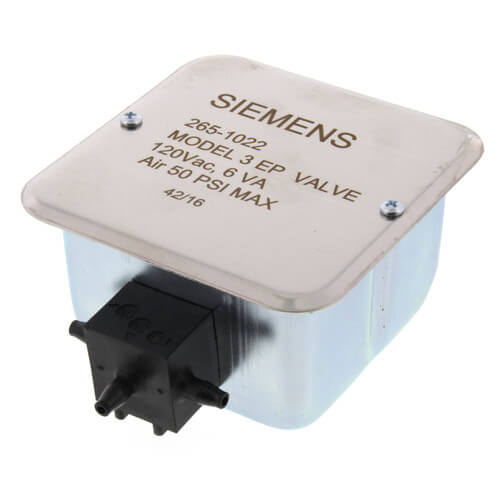

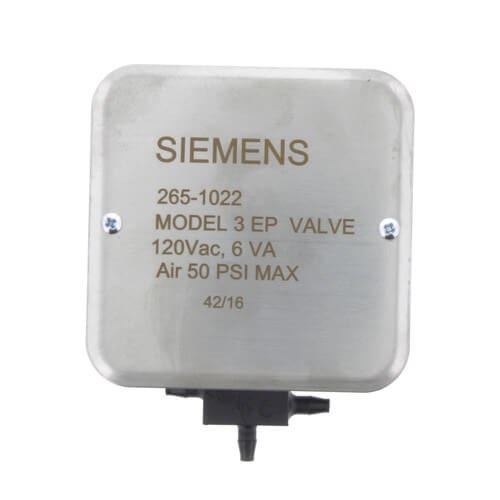

The Series 265 Electro-Pneumatic Valve is a general purpose, electrically operated, two-position 3-way valve designed to control airflow. It can be used for interlock between an electrical system and a pneumatic control system.

This compact, lightweight air valve has barbed, plastic tube connections marked:
  • NC - Normally Closed
  • NO - Normally Open
  • C - Common

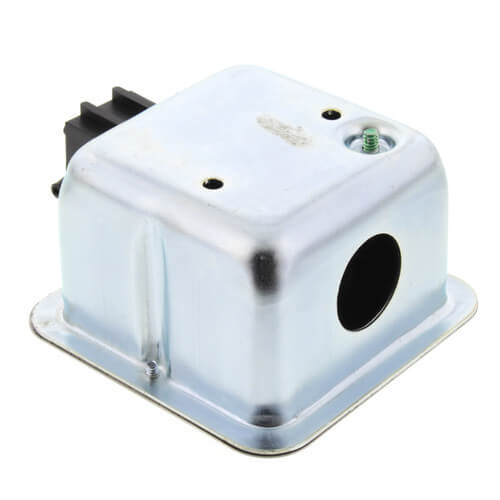

Available types are Open Frame (yoke) and Junction Box (spice box).

Features:
  • UL and cUL recognized per UL 429
  • Valve may be mounted in any position
  • Mounting holes located in the back of the junction box or in the yoke (open frame)
Read more
Manuals (1)
Specs
Product Type:
Electro-Pneumatic Valve
Body Pattern:
3-Way
Position:
2
Hertz:
50/60
Voltage:
110/120v
Mount:
Junction Box
Model:
3
×
