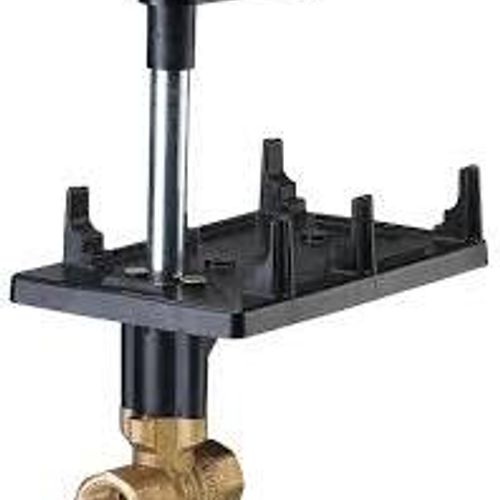

3/4" 2-Way Brass Water Mixing Ball Valve Body (25 Cv)

Designed to provide excellent equal percentage flow control, the Ball Valves are available in 1/2 to 2-inch line sizes and are 1/4-turn rotary control valves. These ball valves are designed to couple with an OpenAir actuator.

Application:

Ball Valves can control hot or chilled water and up to 50% glycol solution in convectors, fan coil units, unit conditioners, radiation, and reheat coils.

Features:

• Universal mounting plate accommodates different actuator sizes
• Variety of ball sizes and flow coefficients minimizes the need for downsizing pipes
• Industry leading shutoff accurately controls fluid through coils
• Actuator and plate can be rotated to facilitate installation and wiring
• Standoffs provide a thermal barrier between the actuator and the mounting plate
• Plastic mounting plate, extensions, and handle do not condensate in chilled or hot water applications
• Operating handle can manually operate valve in the event of a power failure
