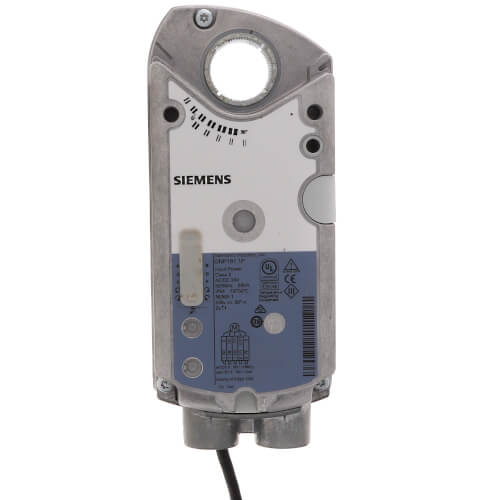

GNP 2-Position, Fail-Safe 53 lb-in Rotary, Electronic Damper Actuator (24V)

The OpenAir direct-coupled fail-safe/fail-in-place electronic actuators are designed for modulating, two-position, and floating control of laboratory fume hoods, constant or variable volume installations for the control of supply and exhaust air and terminal units.

Features:

• Fast operation, 2 second runtime
• One model performing all control signals - 2-position control - Floating control
• Accepts Siemens FHC/LRC pulsed control signal - Modulating control (0(2) to 10Vdc; 4 to 20 mA)
• Feedback is standard on all models
• Highly accurate positioning - Repositioning resolution 0.4%
• Brushless DC motor technology with stall protection.
• Unique self-centering shaft coupling
• 53 lb-in 6 (Nm) torque
• UL and cUL listed, CE certified
• 24 Vac/dc compatible
• Manual override capability
